65805 SL005

多芯电缆, 非屏蔽, 5 芯, 18 AWG, 1 mm², 100 ft, 30.5 m

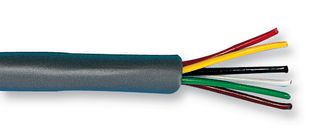

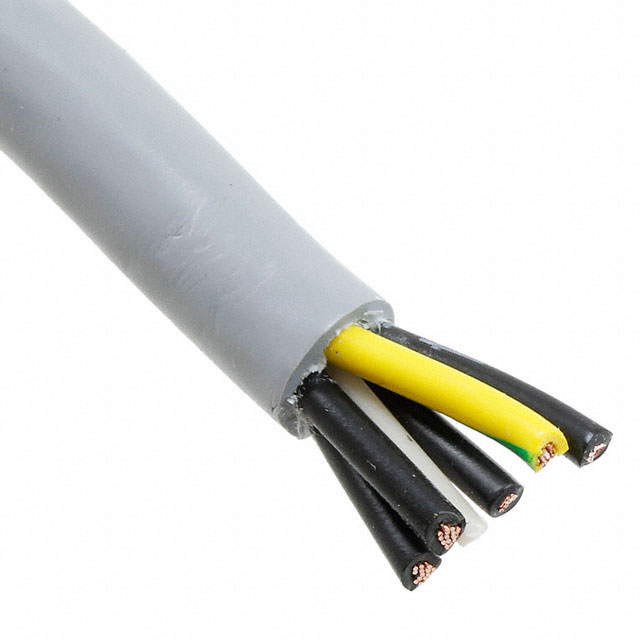

The is a 5-core Unshielded Cable with bare copper conductor and a lubricated PVC insulator. This multi-core Xtra-Guard® standard light-to-moderate flex control cable comes with an oil-resistant slate PVC jacket. The long-lasting flex cable designed to provide excellent performance in high-flex, high torsion and continuous-flex applications such as motion control.

.

Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6

.

63lbs Maximum pull tension

.

0.19µH/ft Nominal inductance

.

6.7R/1000ft at 20°C Nominal conductor DC resistance DCR
