6N137M

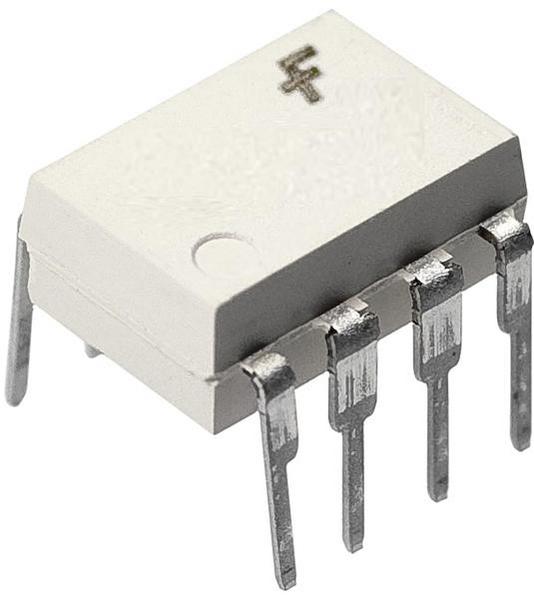

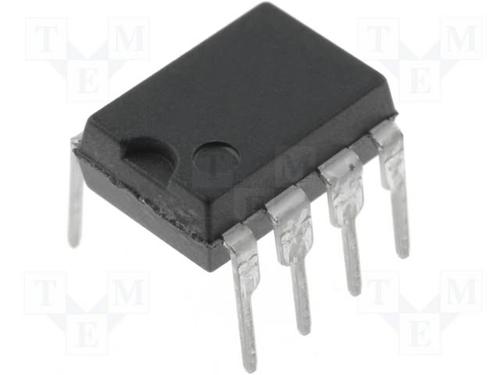

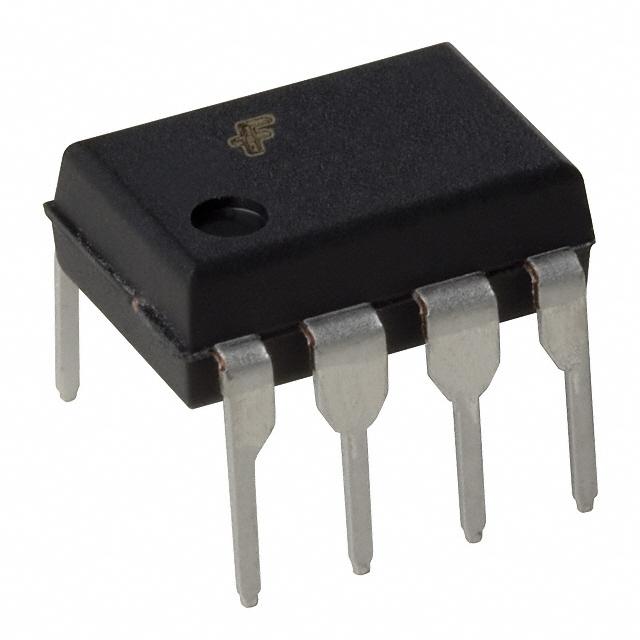

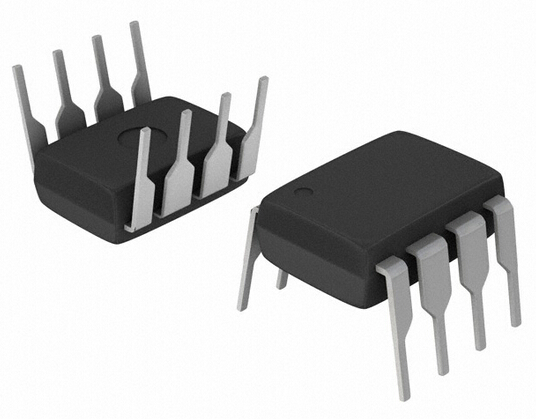

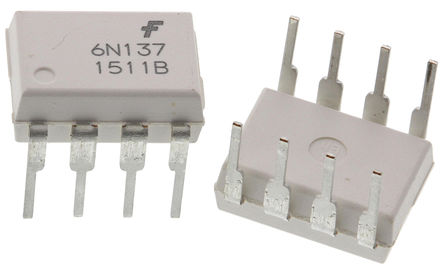

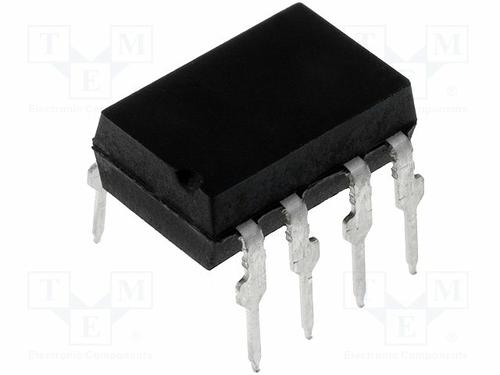

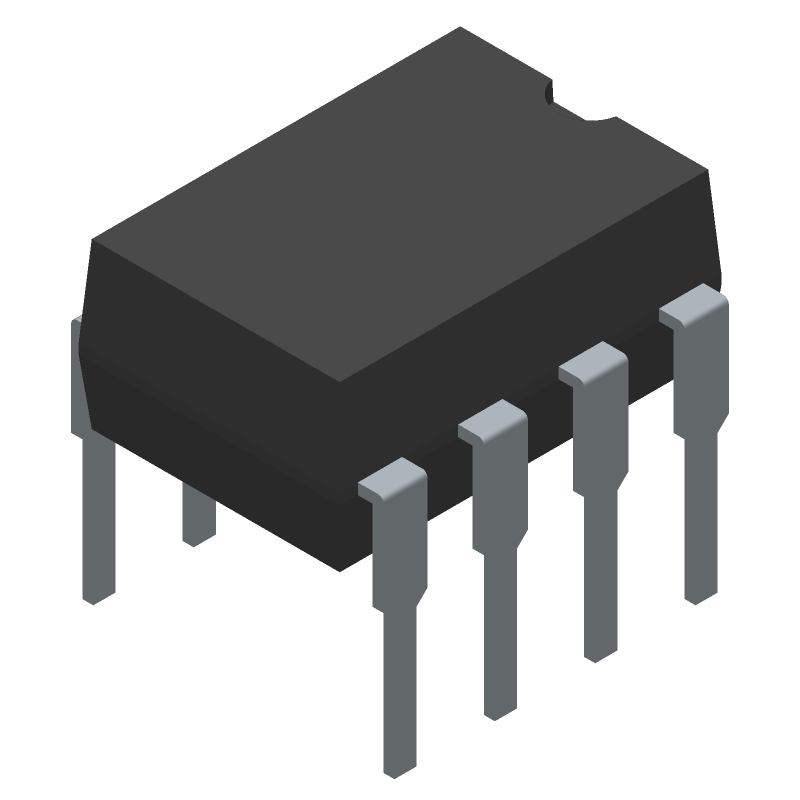

FAIRCHILD SEMICONDUCTOR  6N137M  光电耦合器, 数字式, 5KV, DIP-8

The is a 1-channel 10Mbps high-speed Logic Gate Optocoupler consists of a 850nm AlGaAS LED, optically coupled to a very high-speed integrated photo-detector logic gate with a strobable output. This output features an open collector, permitting wired OR outputs. The coupled parameters are guaranteed over wide temperature range. A maximum input signal of 5mA provided with a minimum output sink current of 13mA fan out of 8. An internal noise shield provides superior common-mode rejection of typically 10kV/µs.

.

Fan-out of 8 over -40 to +85°C temperature range

.

Logic gate output

.

Strobable output

.

Wired OR-open collector
