6HM7-30

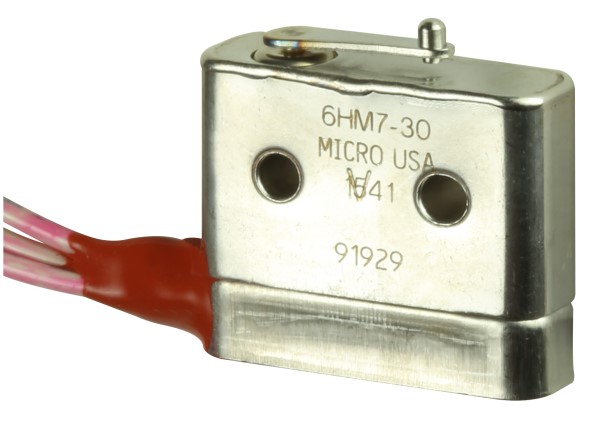

6HM7-30图片1
6HM7-30图片2
6HM7-30图片3
6HM7-30概述

基本/快动开关 SPDT 4A 115VAC 28VDC BASIC SWITCH

SPDT 底座安装


得捷:
SEALED AERO SWITCH


贸泽:
基本/快动开关 SPDT 4A 115VAC 28VDC BASIC SWITCH


艾睿:
Switch Snap Action N.O./N.C. SPDT Lever Wire Lead 4A 115VAC 28VDC 1.95N Screw Mount


Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Wire Lead 4A 115VAC 28VDC 1.95N Screw Mount


Verical:
Switch Snap Action N.O./N.C. SPDT Lever Wire Lead 4A 115VAC 28VDC 1.95N Screw Mount


MASTER:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 4 A at 28 Vdc, Silver Contacts, Stainless Steel Enclosure, 3 9144 mm [360 in] Lead Wire Termination 22 Gage, Leads Marked with Circuit and Gage, Te


Online Components:
MICRO SWITCH™ Hermetically Sealed Limit Switches: HE Series, Double Pole Double Throw DPDT, 7 A 28 Vdc, 15/32-32 UNS Thread ...


Electro Sonic:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 4 A at 28 Vdc, Silver ...


6HM7-30中文资料参数规格
技术参数

额定电流Max 4 A

工作温度Max 260 ℃

工作温度Min -65 ℃

额定电压DC Max 28 V

额定电压AC Max 115 V

外形尺寸

高度 19.94 mm

物理参数

工作温度 -65℃ ~ 260℃

其他

产品生命周期 Active

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

海关信息

HTS代码 8536509055

数据手册

在线购买6HM7-30
型号: 6HM7-30
描述:基本/快动开关 SPDT 4A 115VAC 28VDC BASIC SWITCH
