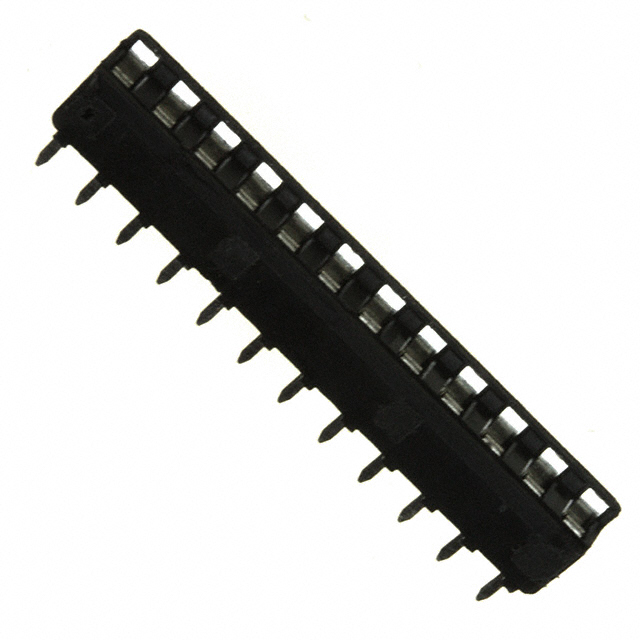

12 位置 2.54 mm 中心线 通孔 Sip 插座
Conn SIP Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Tray
Product Highlights
Number of Positions = 12
Contact Style = Stamped + Formed
Leg Style = Standard
Beryllium Copper Contact Material
Tin Contact Mating Area Plating
Search Keywords:
single in-line IC package, NIC, Network Interface Cards, PC Cards, IC sockets, pc board mount, hybrid, EIA RS-415, MIL-S-83734, Table 23.1, UL 1410,
得捷:
CONN SOCKET SIP 12POS TIN
富昌:
12 位置 2.54 mm 中心线 通孔 Sip 插座
Verical:
Conn SIP Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Box/Tray
Electro Sonic:
Conn SIP Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Tray
触点数 12
极性 Female
触点电镀 Tin
绝缘电阻 5000 MΩ
易燃性等级 UL 94 V-0
针脚数 12
安装角度 180 °
接触电阻Max 20 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 30.4 mm
宽度 3.91 mm
高度 5.33 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 End of Life
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
