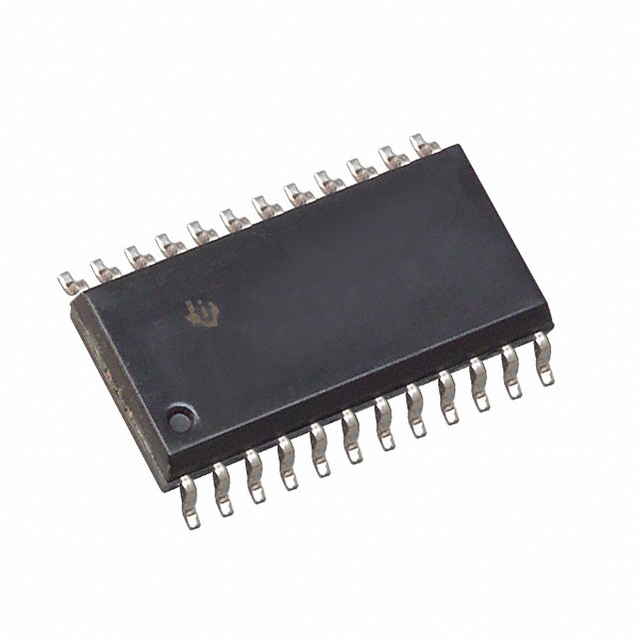

八路总线收发器 24-SOIC -40 to 85
description
This octal bus transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
The device allows noninverted data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The output-enable OE input can be used to disable the device so that the buses are effectively isolated.
The 74AC11245 is characterized for operation from –40°C to 85°C.
• 3-State Outputs Drive Bus Lines Directly
• Flow-Through Architecture Optimizes PCB Layout
• Center-Pin VCC and GND Configurations
Minimize High-Speed Switching Noise
• EPIC™ Enhanced-Performance Implanted CMOS 1-μm Process
• 500-mA Typical Latch-Up Immunity at 125°C
• Package Options Include Plastic
Small-Outline DW, Shrink Small-Outline DB, and Thin Shrink Small-Outline PW Packages, and Standard Plastic 300-mil DIPs NT
电源电压DC 3.00V ~ 5.50V
输出接口数 8
电路数 8
位数 8
传送延迟时间 9.50 ns
电压波节 5.00 V, 3.30 V
耗散功率 1700 mW
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1700 mW
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 24
封装 SOIC-24
高度 2.35 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
