74LVC1G14GW,125

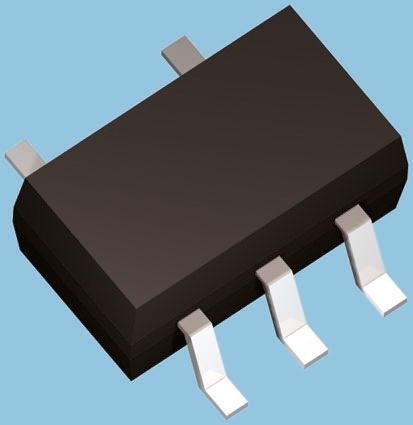

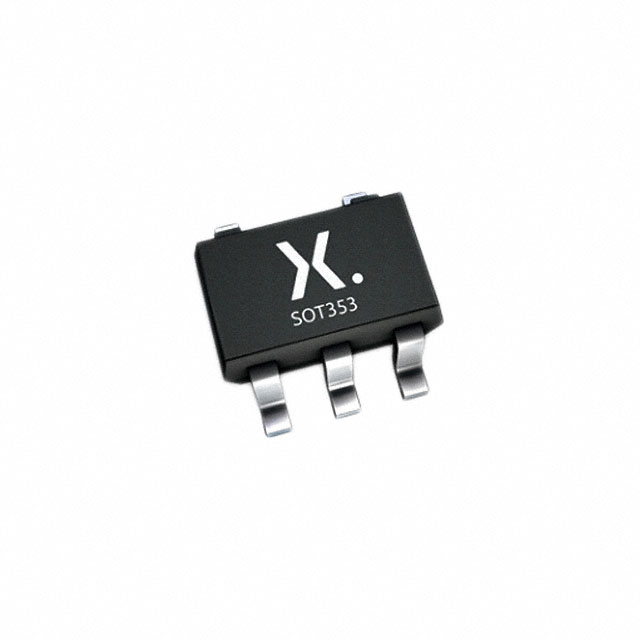

NXP  74LVC1G14GW,125  非门, LVC系列, 施密特触发, 1门, 1输入, 1.65V至5.5V, TSSOP-5

The 74LVC1G14GW is a single Schmitt-trigger Inverter provides the inverting buffer function with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the input makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

.

High noise immunity

.

Complies with JEDEC standard - JESD8-7, JESD8-5 and JESD8-B/JESD36

.

±24mA Output drive VCC = 3V

.

CMOS low power consumption

.

Latch-up performance exceeds 250mA

.

Direct interface with TTL levels

.

Unlimited rise and fall times

.

Inputs accept voltages up to 5V

.

ESD protection - HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V
