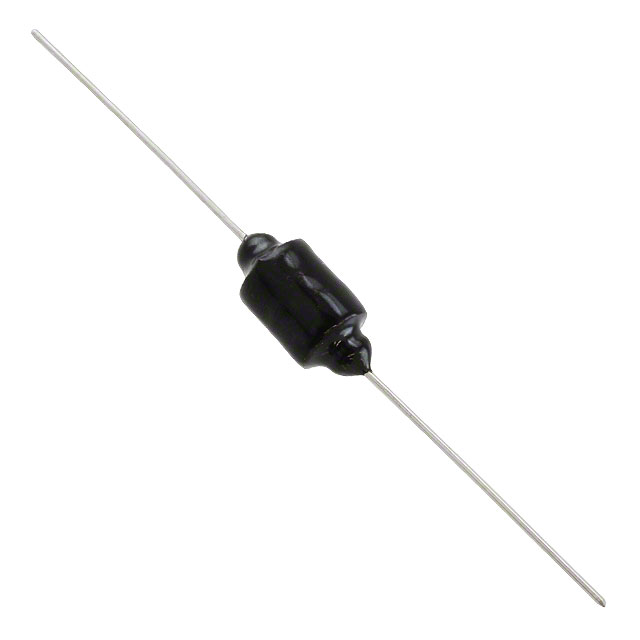

70F502AF-RC

高Q值，高自谐振频率 High Q, high self-resonant frequency

50 mH 无屏蔽 绕线 器 37 mA 175 欧姆最大 轴向

得捷:
FIXED IND 50MH 37MA 175 OHM TH

立创商城:
50mH ±5% 37mA 175Ω

贸泽:
Fixed Inductors 50mH 5%

艾睿:
This rf choke 70F502AF-RC leaded inductor from Bourns resists changes in electric current passing through it. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This device is made with wirewound technology. This leaded inductor has a maximum DC current of 37m A with a maximum resistance of 175 Ohm. Its test frequency is 79K Hz, while its minimum self-resonant frequency is 196K Hz. It has an inductance of 50m H. This product is 16.76 mm long with a diameter of 10.16 mm. It has a tolerance of 5%.

安富利:
Ind RF Choke Wirewound 50mH 5% 79KHz 57Q-Factor Ferrite 37mA AXL

Chip1Stop:
Ind RF Choke Wirewound 50mH 5% 79KHz 57Q-Factor Ferrite 37mA AXL

Verical:
RF Choke Wirewound 50000uH 5% 79KHz 57Q-Factor Ferrite 0.037A 175Ohm DCR AXL

Newark:
# BOURNS JW MILLER  70F502AF-RC  Axial Leaded High Frequency Inductor, Varnished Choke, 70F Series, 50 mH, 37 mA, 175 ohm, ± 5%

MASTER:
RF Choke - Wirewound - 50mH - 79KHz 57Q-Factor - Ferrite 37mA - 175Ohm - PCB Mount.

Online Components:
RF Choke Wirewound 50mH 5% 79KHz 57Q-Factor Ferrite 37mA 175Ohm DCR AXL

Electro Sonic:
RF Choke - Wirewound - 50mH - 79KHz 57Q-Factor - Ferrite 37mA - 175Ohm - PCB Mount.
