74LVC08A

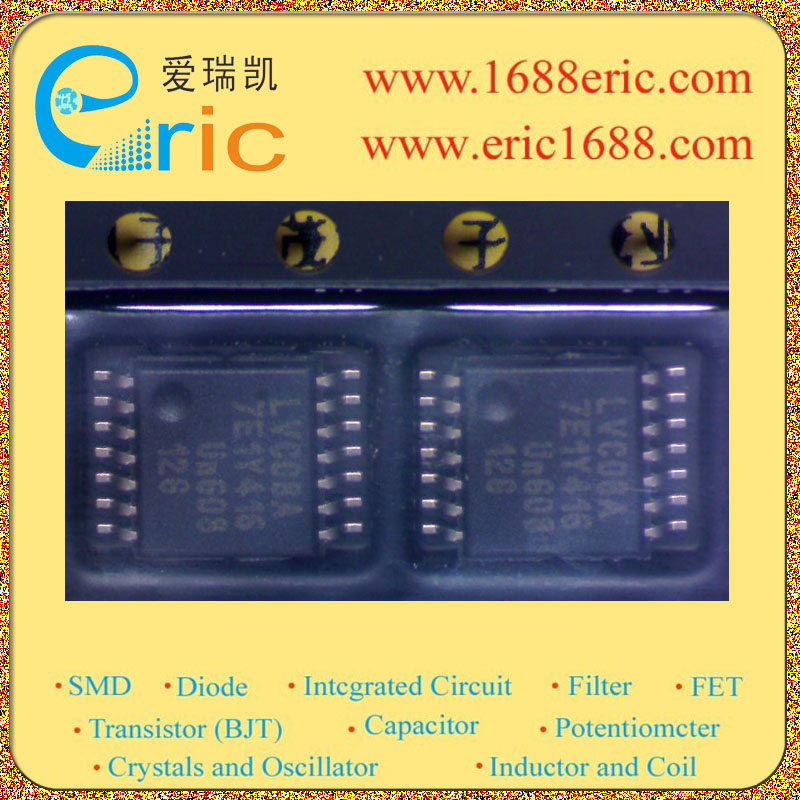

IC 与门 74LVC08A TSSOP14 marking/标记 LVC08A

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 4 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 1.65V~3.6V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -24mA，24mA 低逻辑电平Logic Level - Low| 0.7V~0.8V 高逻辑电平Logic Level - High| 1.7V~2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 3.9ns @ 3.3V，50pF Description & Applications| Quad 2-input AND gate；FEATURES • Wide supply voltage range of 1.2 V to 3.6 V • In accordance with JEDEC standard no. 8-1A • Inputs accept voltages up to 5.5 V • CMOS low power consumption • Direct interface with TTL levels 描述与应用| 四路2输入与门；特性 •宽电源电压范围为1.2 V至3.6 V •在按照JEDEC标准编号 8-1A •输入接受高达5.5 V的电压 •CMOS低功耗 •直接接口TTL水平
