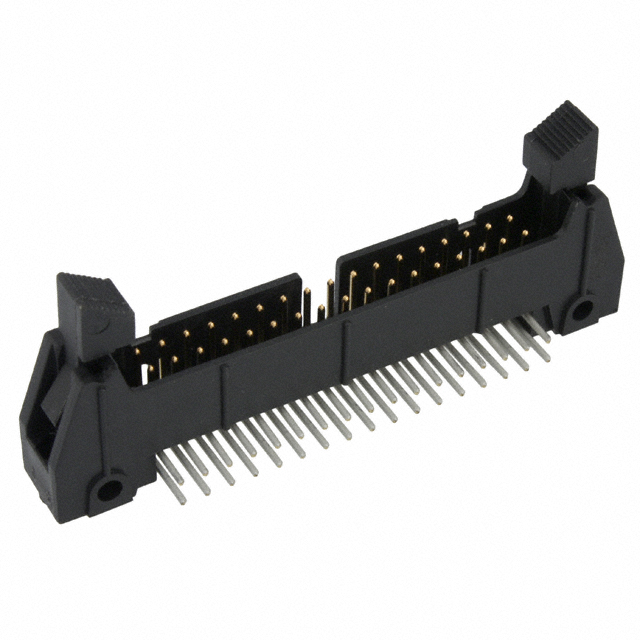

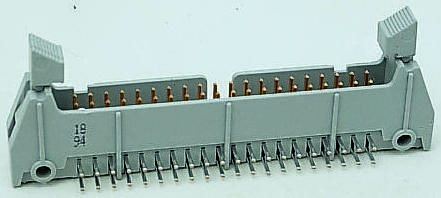

N3431-5202RB

3M  N3431-5202RB  线至板连接器, 短锁定, 3000系列, 34 触点, 针座, 2.54 mm, 通孔安装, 2 排

HE 10 斜角焊接，带短锁

转换连接器配有长锁/弹出器，设计用于锁定 HE 10 母连接器，不带应力消除附件。

得捷:
CONN HEADER R/A 34POS 2.54MM

欧时:
PCB HEADERS 34 CONTACTS

贸泽:
Headers & Wire Housings 34P R/A SHORT PIN SOLDER TAIL 30u GOLD

e络盟:
线至板连接器, 短锁定, 2.54 mm, 34 触点, 针座, 3000系列, 通孔安装, 2 排

艾睿:
Look no further than the ejector N3431-5202RB header connector from 3M, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 34 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 1.75 A. This product is 62.61 mm long, 8.6 mm tall and 24.6 mm deep. This connector has an operating temperature of -55 to 105 °C. N3431-5202RB is housed in black polychlorinated terphenyl. It uses the solder termination method.

安富利:
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Box

Verical:
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Side Entry Thru-Hole

Newark:
# 3M  N3431-5202RB  Wire-To-Board Connector, Short Latch, 3000 Series, Through Hole, Header, 34, 2.54 mm

儒卓力:
**34P SHORT ROLL PIN LATCH/EJECT **

Electro Sonic:
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole
