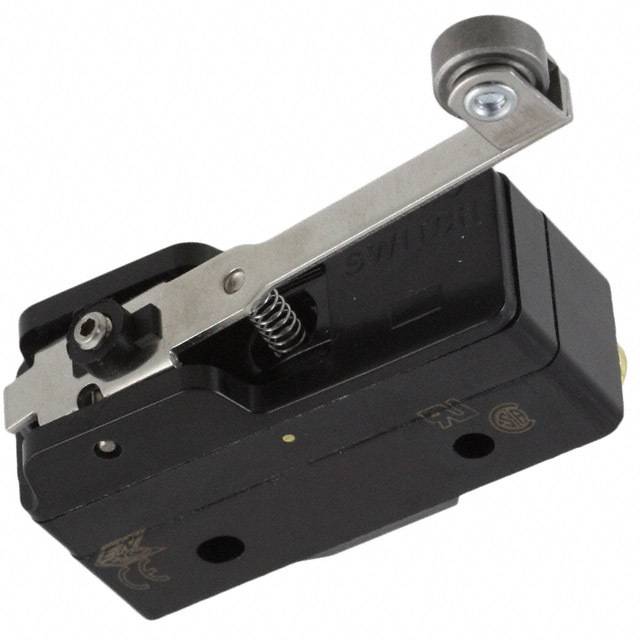

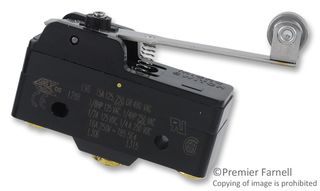

HONEYWELL BZ-2RW8299-A2 微型开关, 摁入式
**BZ Series Switches**
The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.
贸泽:
基本/快动开关 Roller Lever Actutor Slvr Contacts-Screw
e络盟:
HONEYWELL BZ-2RW8299-A2 微型开关, 摁入式
艾睿:
This BZ-2RW8299-A2 snap-action switch from Honeywell can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 16 A @ 250VAC. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-2RW8299-A2 snap action switch has a screw termination style. This product is 64.26 mm long, 48.67 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
Basic Switch, BZ Series, SPDT, 15A 125VAC, Roller Lvr, Screw Term, CE, CSA, DEMKO
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Screw 16A 480VAC 250VDC 186.42VA 0.97N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever 16A 480VAC 250VDC 186.42VA 0.97N Screw Mount Screw Automotive
Newark:
# HONEYWELL BZ-2RW8299-A2 Microswitch, BZ Series, SPDT, Screw, 15 A, 480 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, 48,3 mm [1.90 in] Roller Lever Actuator with Adjustable Operating Point, Binding Head Combination Screw Termination with Cup Washe
Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
