IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments
锂离子电池充电 IC,Texas Instruments
Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.
得捷:
IC BATT CHG LI-ION 16DIP
立创商城:
BQ2054PN
德州仪器TI:
Switch-mode Li-Ion Battery Charger in PDIP or SOIC Package
欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments
艾睿:
Fast Charge Management Li-Ion/Li-Pol 2000mA 16-Pin PDIP Tube
安富利:
Fast Charge Management Li-Ion Pack 16-Pin PDIP Tube
Chip1Stop:
Battery Charge Management Switch-mode Li-Ion Battery Charger in PDIP or SOIC Package Fast Charge Management Li-Ion Pack 16-Pin PDIP Tube
Newark:

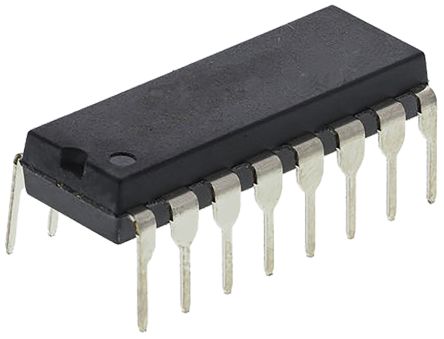

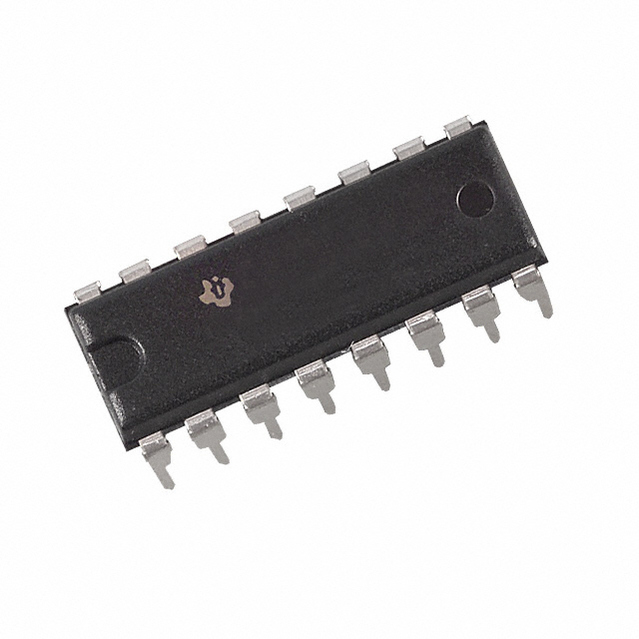

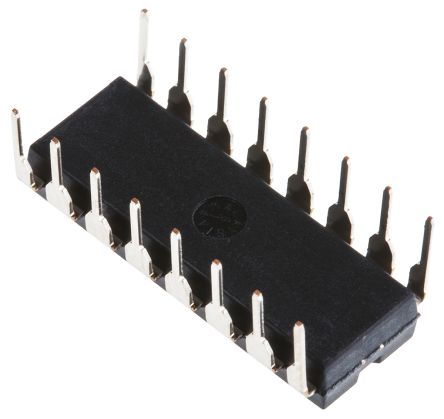

# TEXAS INSTRUMENTS BQ2054PN Battery Charger for 4 Cells of Li-Ion, Li-Pol battery, 5.5V input, 2 A charge, DIP-16
Win Source:
IC LITH-ION FAST CHARGE 16-DIP
电源电压DC 5.50V max
输入电压DC 5.50 V
开关频率 100 kHz
工作温度Max 70 ℃
工作温度Min -20 ℃
电源电压 4.5 V
输入电压 5.5 V
安装方式 Through Hole
引脚数 16
封装 PDIP-16
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-16
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
