BK8500

B&K 精密 300W 可编程直流电子负载，型号 BK8500BK8500 是一种价格合理、全功能可编程电子直流负载，具有高精确度和极佳的显示器分辨率。 它适用于直流电源和直流-直流转换器测试和校准。 因为该仪器可通过 RS 232 接口完全编程，因此是用于自动测试系统的常见选择。 可在 0-120V 直流、1mA-30A（最大 300W）之间操作 高分辨率 0.1mA/1mV（取决于量程） VFD 显示屏 CV/CC/CW/CR 操作 过电流/过电压/过功率/过温保护 包括 RS 232 接口电缆和软件 恒温器受控内部风扇 可并联或串联连接多个装置，以提高功率额定值 ### 随附RS 232 接口电缆和软件### 电子负载

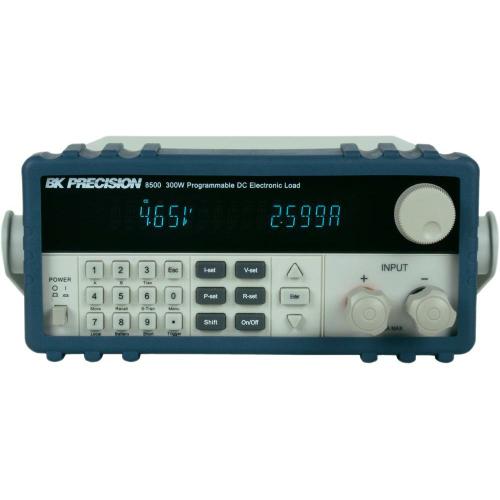

The laboratory grade model 8500 Programmable DC Electronic Load is well suited for testing and evaluating a wide variety of DC power sources. This DC electronic load can operate in CC, CV, CR or CP mode while voltage/current or resistance/power values are measured and displayed in real time and is fully programmable via RS232 or USB interface. Extensive protection, including over temperature, over power, over voltage, over current and reverse polarity will help protect your valuable prototype. Its flexible operating modes and excellent measurement accuracy make this DC electronic load a great choice for characterizing DC Power supplies, DC-DC Converters, batteries, fuel cells and solar cells.

.

Operates between 0-120 VDC, 1 mA-30 A, 300 W max

.

Built-in high resolution 0.1 mA/1 mV voltage and current measurement range dependant

.

Bright, easy to read display VFD technology

.

Built-in transient generator

.

List mode operation for increased throughput

.

Battery testing mode to provide Ah rating of battery

.

Create trigger events by front panel keystroke, back panel TTL signal or software

.

Connect multiple units in parallel to increase current rating

.

Remote sense

.

Serial interface cable and software included
