BSC054N04NSGATMA1

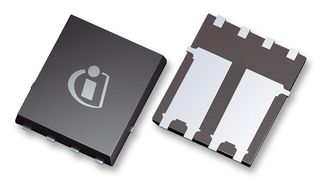

BSC054N04NSGATMA1图片1
BSC054N04NSGATMA1图片2
BSC054N04NSGATMA1图片3
BSC054N04NSGATMA1图片4
BSC054N04NSGATMA1概述

BSC054N04NSGATMA1 编带

The BSC054N04NS G is an OptiMOS™ N-channel Power MOSFET perfect choice for synchronous rectification in switched mode power supplies SMPS. In addition it can be used for a broad range of industrial applications including fast switching DC-to-DC converter.

.
Excellent gate charge x RDS ON product FOM
.
Very low ON-resistance RDS ON
.
Ideal for fast switching applications
.
MSL1 rated
.
Highest system efficiency
.
Less paralleling required
.
Increased power density
.
Very low voltage overshoot
.
Logic level
.
Superior thermal resistance
.
100% Avalanche tested
.
Halogen-free, Green device
.
Qualified according to JEDEC for target applications
BSC054N04NSGATMA1中文资料参数规格
技术参数

额定功率 57 W

针脚数 8

漏源极电阻 0.0045 Ω

极性 N-Channel

耗散功率 57 W

阈值电压 2 V

漏源极电压Vds 40 V

连续漏极电流Ids 17A

上升时间 2.6 ns

输入电容Ciss 2100pF @20VVds

下降时间 3.6 ns

工作温度Max 150 ℃

工作温度Min -55 ℃

耗散功率Max 2.5W Ta, 57W Tc

封装参数

安装方式 Surface Mount

引脚数 8

封装 PG-TDSON-8

外形尺寸

封装 PG-TDSON-8

物理参数

工作温度 -55℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Power Management, Communications & Networking, Industrial, 通信与网络, Synchronous rectification, Portable Devices, Computers & Computer Peripherals, 电源管理, Motor Drive & Control, 工业, 便携式器材, 电机驱动与控制, Or-ing switches, Isolated DC-DC converters, Consumer Electronics, 计算机和计算机周边, 消费电子产品

符合标准

RoHS标准

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册
