CR-2477/VCN概述

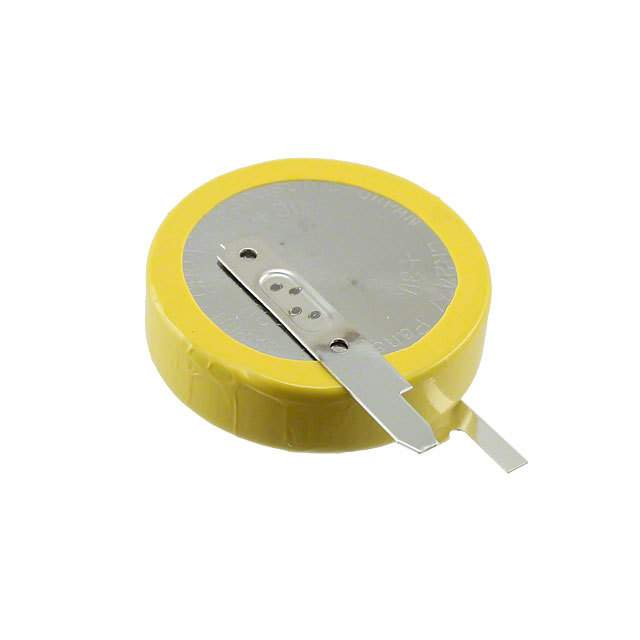

BATTERY LITHIUM 3V COIN 24.5MM
The is a 2447 3V/1000mAh Non-rechargeable Battery, lithium manganese dioxide with PCB-pin terminal, vertical PCB mount, high voltage of 3V - Twice that of conventional dry batteries, extremely small self-discharge for long service and shelf life, compact and lightweight, extremely high energy density, very safe poly-carbonmonofluoride lithium, extremely strong load pulse characteristics manganese dioxide lithium.
- .
- 0.2mA Continuous standard load
- .
- -30 to 60°C Operating temperature range
CR-2477/VCN中文资料参数规格
技术参数
工作温度Max 60 ℃
工作温度Min -30 ℃
封装参数
安装方式 Through Hole
引脚数 2
外形尺寸
高度 7.7 mm
物理参数
重量 10.5 g
其他
产品生命周期 Unknown
包装方式 Bulk
制造应用 Test & Measurement, Consumer Electronics, Clock & Timing, Portable Devices, Power Management
符合标准
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC标准 Contains SVHC
REACH SVHC版本 2015/06/15
海关信息
ECCN代码 EAR99
