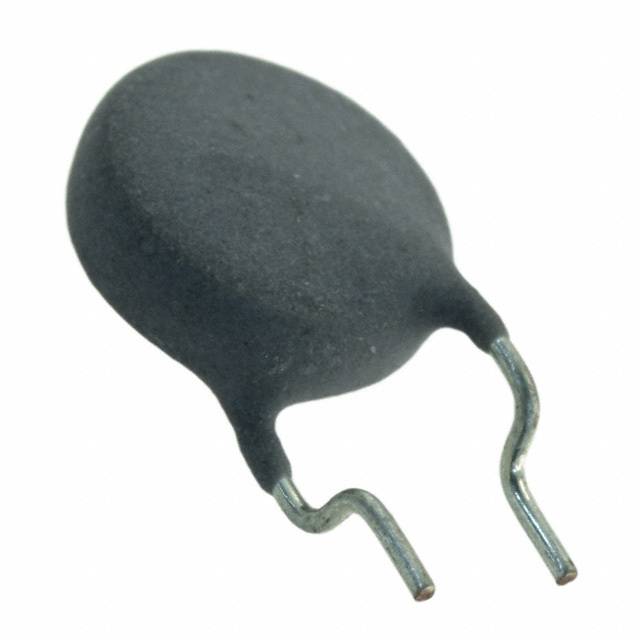

自恢复保险丝—PPTC RESETTABLE FUSE 230VOLT 25OHM
This PTC resettable fuse from Bourns is ideal for low current and low voltage ratings. This part has a lead diameter of 0.6Nom mm. This resettable fuse has an operating temperature range of -40 °C to 125 °C. It has 2 terminals. This product is 5Max mm deep. This product"s terminal pitch is 5nom mm.
得捷:
PTC RESET FUSE 220V 100MA RADIAL
立创商城:
CMF-RL25-0
贸泽:
自恢复保险丝—PPTC RESETTABLE FUSE 230VOLT 25OHM
艾睿:
This CMF-RL25-0 PTC resettable fuse from Bourns is ideal for low current and low voltage ratings. This part has a lead diameter of 0.6Nom mm. This resettable fuse has an operating temperature range of -40 °C to 125 °C. It has 2 terminals. This product is 5Max mm deep. This product&s;s terminal pitch is 5nom mm.
安富利:
PTC Resettable Fuse 220VAC Bulk
Verical:
PTC Resettable Fuse 0.1Ahold 0.2Atrip 220VAC 3A 0.3s Radial 9.8 X 5mm Bulk
跳闸时间 300 ms
电阻 25 Ω
保持电流 0.1 A
跳闸电流 0.2 A
额定电流Max 3 A
保持电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 220 VAC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 9.8 mm
宽度 5 mm
高度 13.5 mm
封装 Radial, Disc
厚度 5 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
