Panel Mount - 53RV SeriesThree-phase motor reversing solid-state relay Ratings from 25A and 50A per phase at 48 → 530 Vac Interlock circuit prevents inadvertent actuation of both directions SCR output for heavy industrial loads DC control voltage LED input status indicator ### 认可CE, RoHS### 瞬时切换### 注温度能够影响电流额定值;请在数据表中查阅可能的降额。
Panel Mount - 53RV Series
Three-phase motor reversing solid-state relay
Ratings from 25A and 50A per phase at 48 → 530 Vac
Interlock circuit prevents inadvertent actuation of both directions
SCR output for heavy industrial loads
DC control voltage
LED input status indicator
### 认可
CE, RoHS
### 瞬时切换
### 注
温度能够影响电流额定值;请在数据表中查阅可能的降额。
欧时:

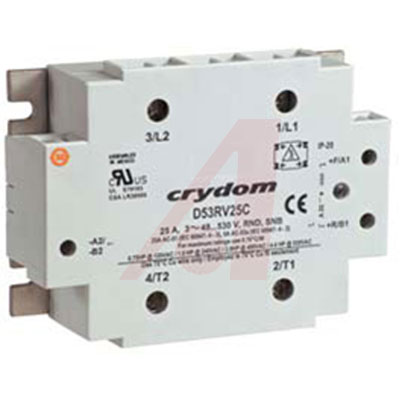

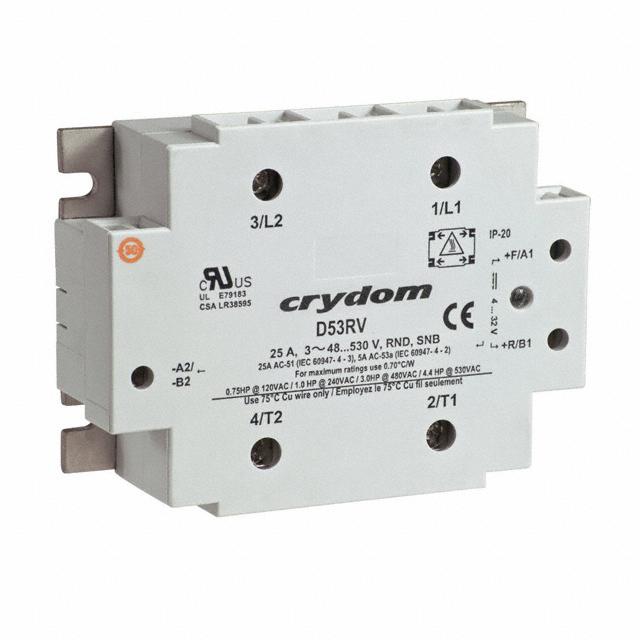

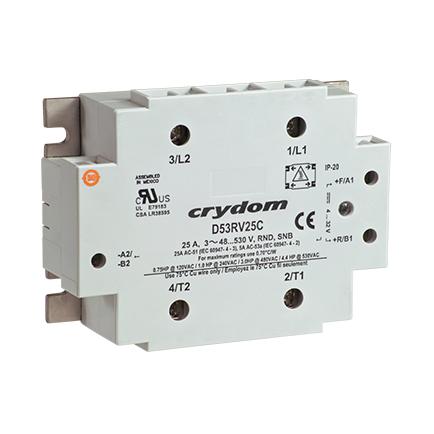

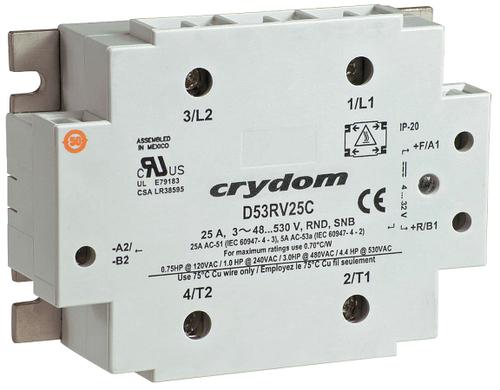

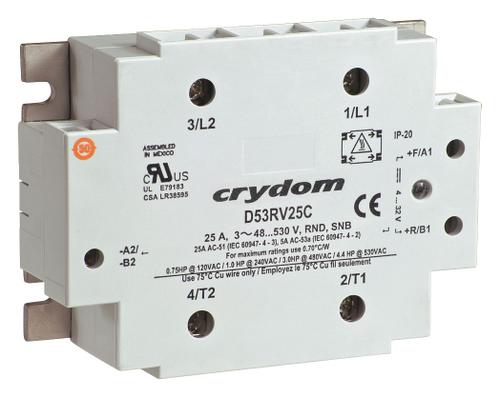

Sensata / Crydom 25 A rms 面板安装 固态继电器 D53RV25C, SCR输出, 瞬时切换, 530 V 有效值
得捷:
RELAY SSR IP20 25A 3PHAS PNL MNT
艾睿:
Relay SSR 35mA 32V DC-IN 25A 530V AC-OUT
Allied Electronics:
Solid State Relay Screw Panel Mount, Instantaneous SCR, 25 A rms, 32 V dc
Chip1Stop:
Relay SSR 35mA 32V DC-IN 25A 530V AC-OUT
TME:
Relay: solid state; Ucntrl:4÷32VDC; 25A; 48÷530VAC; Series:53RV
Verical:
Relay SSR 35mA 32V DC-IN 25A 530V AC-OUT
Newark:
# CRYDOM D53RV25C Solid State Relay, 25 A, Panel, Screw Clamp, 48 VAC, 530 VAC
MASTER:
SOLID STATE RELAY 48-530 V - IP20, 600VAC, 25A, 3 Phase MR SSR
Electro Sonic:
SOLID STATE RELAY 48-530 V - IP20, 600VAC, 25A, 3 Phase MR SSR
工作电压 4VAC ~ 32VAC
负载电流 25 A
输入电流 35 mA
隔离电压 4000 v
输入电压Max 32 V
输入电压Min 4 V
输出电压Max 530 V
输入电流Min 35 mA
负载电流Max 25 Arms
负载电流Min 100 mArms
工作温度Max 80 ℃
工作温度Min -40 ℃
工作电压Min 48 VAC
工作电压Max 530 VAC
输入电压 32 V
安装方式 Panel
封装 Module
长度 103.9 mm
宽度 79.7 mm
高度 79.7 mm
封装 Module
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490080
