IHLP2525BDER6R8M01

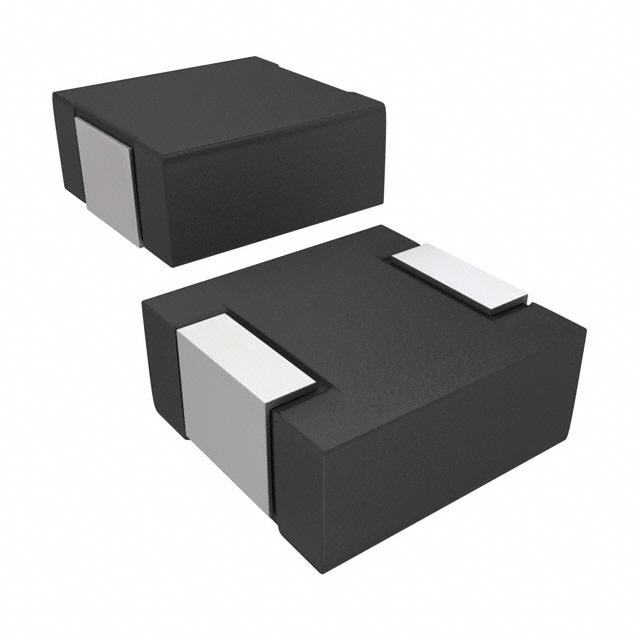

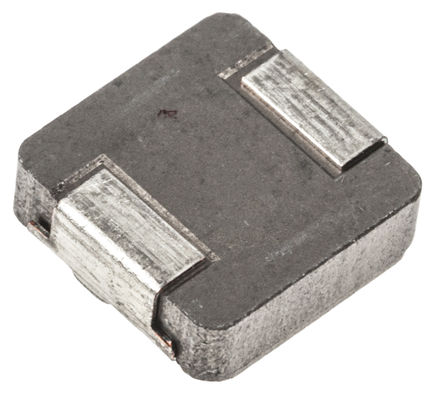

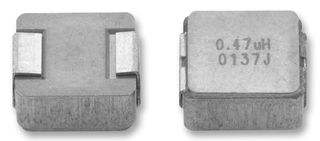

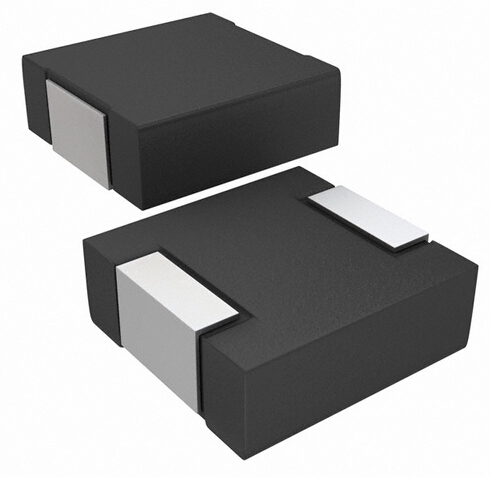

VISHAY  IHLP2525BDER6R8M01  表面贴装功率电感器, IHLP-2525BD-01系列, 6.8 µH, ± 20%, 屏蔽, 0.095 ohm, 3.5 A

The IHLP-2525BD-01 series from Vishay are surface mount low-profile, high-current inductor. The inductance value ranging from 0.1µH to 10µH. Typical applications include PDA / notebook / desktop / server, high current POL converters, power supplies, Battery powered devices, DC/DC converters.

.

EIA 25256363 metric standard chip size

.

±20% tolerance

.

Frequency range up to 5MHz

.

Shielded construction

.

Lowest DCR/µH, in this package size

.

Handles high transient current spikes without saturation

.

Ultra low buzz noise, due to composite construction

.

Operating temperature range -55°C to +125°C
