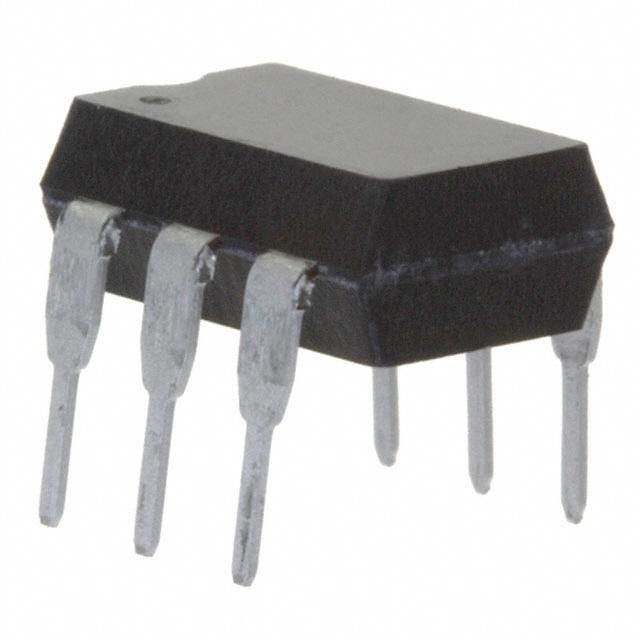

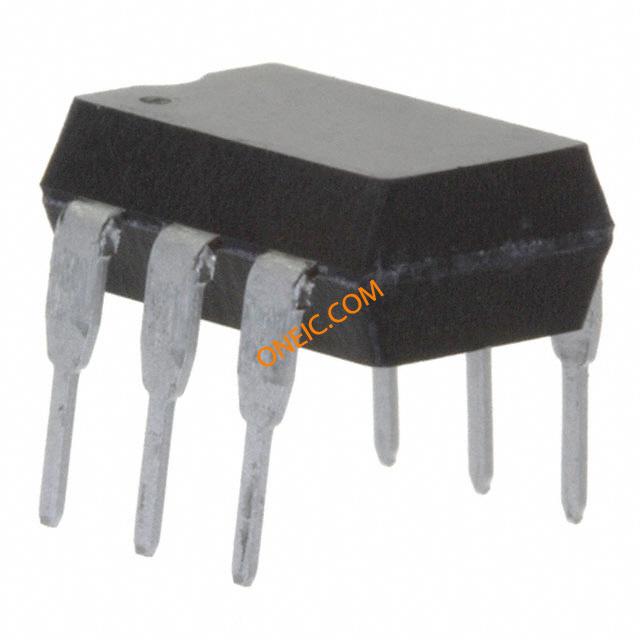

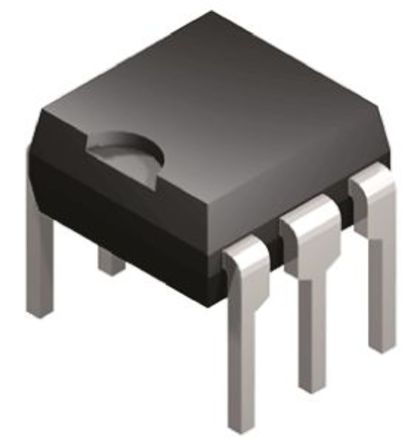

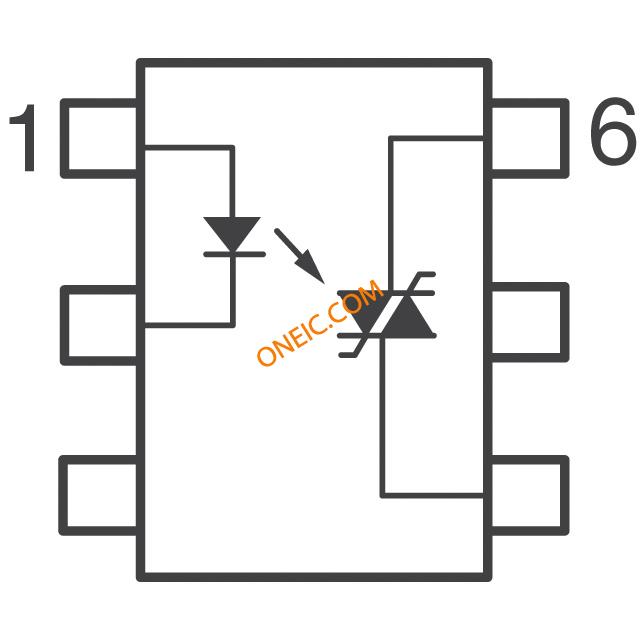

VISHAY IL4216 光电耦合器, 三端双向可控硅输出, DIP, 6 引脚, 5.3 kV, 非过零, 650 V
The is a 6-pin Phototriac Output Optocoupler consists of an AlGaAs IRLED optically coupled to a pair of photosensitive non-zero crossing SCR chips and is connected inversely parallel to form a TRIAC. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR predriver resulting in an LED trigger current of less than 1.3mA DC. The use of a proprietary dV/dt clamp results in a static dV/dt of greater than 10kV/µs. This clamp circuit has a MOSFET that is enhanced when high dV/dt spikes occur between MT1 and MT2 of the TRIAC. The FET clamps the base of the phototransistor when conducting, disabling the internal SCR predriver. The blocking voltage of up to 800V permits control of off-line voltages up to 240VAC, with a safety factor more than two and is sufficient for as much as 380VAC. Current handling capability is up to 300mA RMS, continuous at 25°C.
输出电压 800 V
输出电流 0.3 A
通道数 1
针脚数 6
正向电压 1.3 V
输入电流 20.0 mA
耗散功率 300 mW
隔离电压 5300 Vrms
保持电流 200 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 455 VAC
输入电流Min 60 mA
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 300 mW
安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 8.7 mm
宽度 6.5 mm
高度 3.81 mm
封装 DIP-6
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
