IRFIZ48GPBF

N 通道 MOSFET，60V 至 90V，Vishay Semiconductor### MOSFET 晶体管，Vishay Semiconductor

DESCRIPTION

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

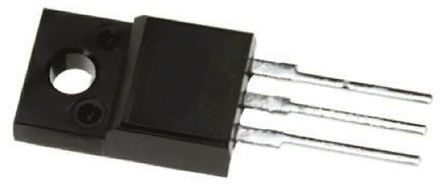

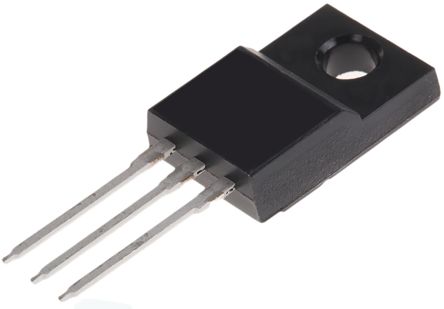

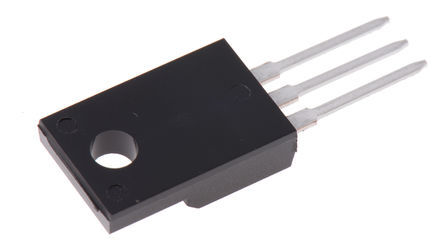

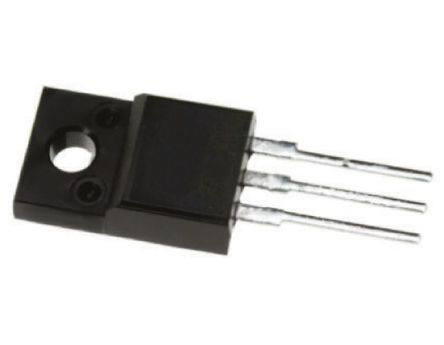

The TO-220 FULLPAK eliminates the need for additional insulating hardware in commercial-industrial applications. The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. The isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a  heatsinkusing a single clip or by a single screw fixing.

FEATURES

• Isolated Package

• High Voltage Isolation = 2.5 kVRMSt = 60 s; f = 60 Hz

• Sink to Lead Creepage Distance = 4.8 mm

• 175 °C Operating Temperature

• Dynamic dV/dt Rating

• Low Thermal Resistance

• Lead Pb-free Available
