开关稳压器 10V, Hi Eff, Sync, No RSENSE Buck-Boost
Thanks to "s step up/step down DC voltage controller, you"ll be able to accurately increase or decrease the DC voltage within your electronic circuit. Its output produces a current of 10Max A. This DC voltage controller has 2 outputs. With an output that has a voltage of 2.7 to 10 V, this is power management at its best. This DC voltage controller has an input voltage of 2.7 to 10 V. This part offers a switching frequency of 100 to 1000 kHz in order to work properly. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 2
输出电压 2.7V ~ 10V
输出电流 10 A
静态电流 0.8 mA
开关频率 100kHz ~ 1MHz
输入电压Max 10 V
输入电压Min 2.7 V
输出电流Max 10 A
最大占空比 0.99
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 10V
安装方式 Surface Mount
引脚数 24

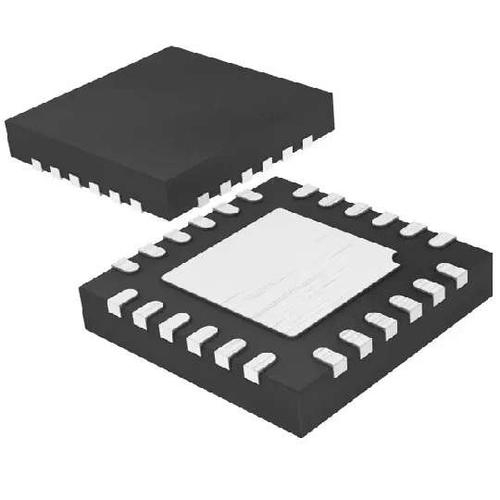

封装 QFN-24
高度 0.75 mm
封装 QFN-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown

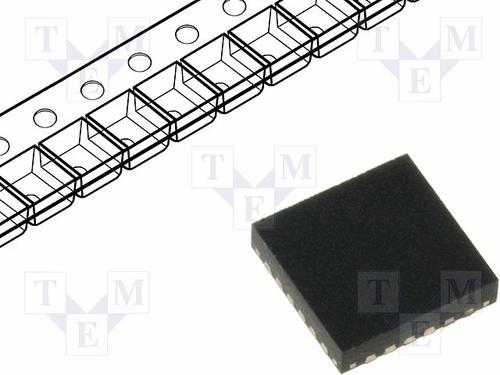

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
