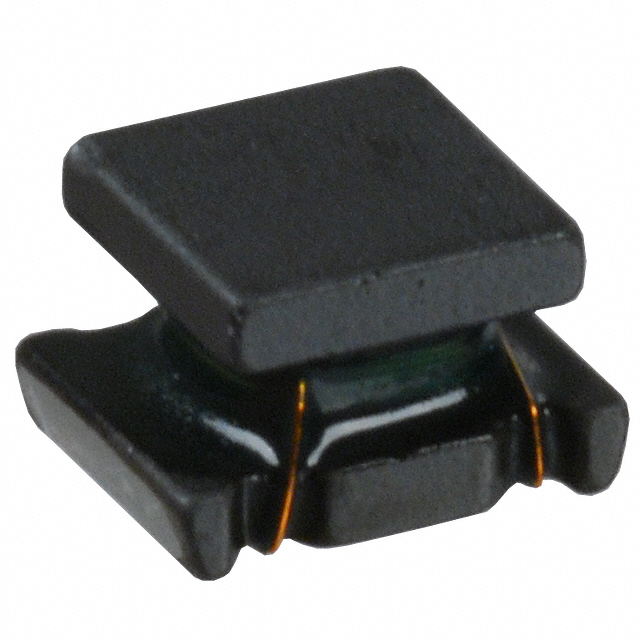

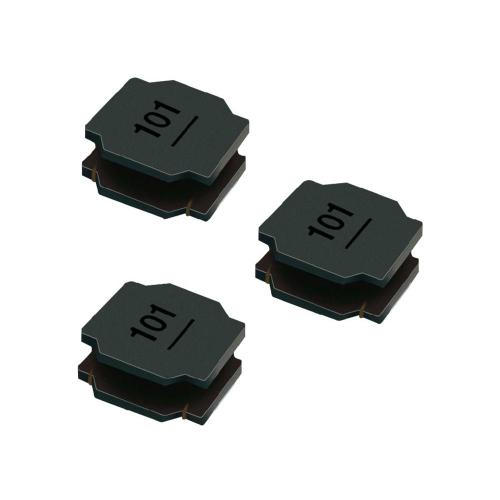

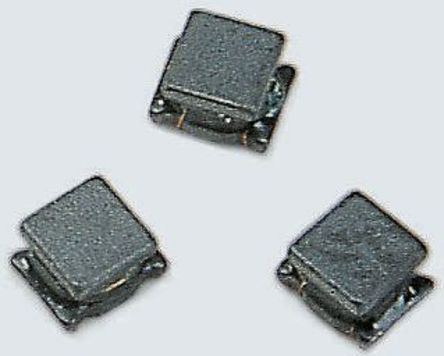

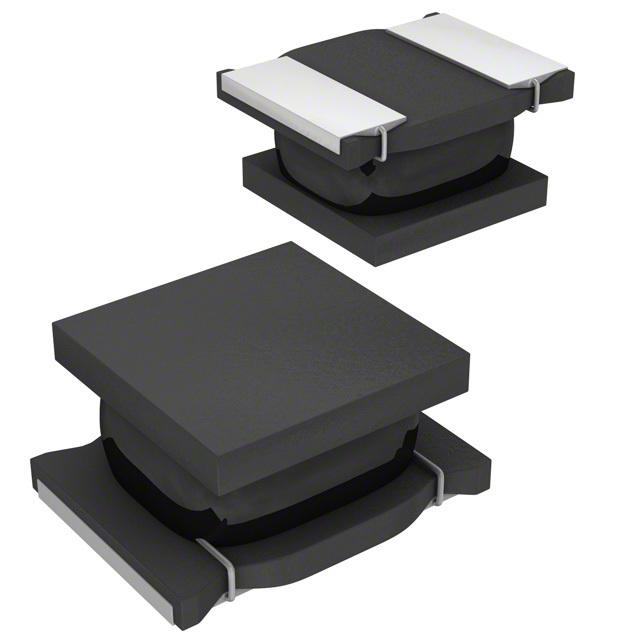

LQH32M 系列 1210 15 uH ± 5 % 2.2 Ohm 170 mA 表面贴装 线绕电感
Murata 1210 LQH32MN 系列线绕器
超微型线圈电感器,带铁氧体磁芯,适合一般用途。
高质量和低直流电阻。
这些芯片特别适用于视频、通信、音频设备和移动电话中电子电路性能的提高。
得捷:
FIXED IND 15UH 170MA 2.2 OHM SMD
立创商城:
15uH ±5% 2.2Ω
欧时:
Murata LQH32MN 系列 15 μH 绕线贴片电感器 LQH32MN150J23L, ±5%容差, 170mA Idc Q:35, 2.2Ω最大直流电阻
艾睿:
This general purpose chip LQH32MN150J23L surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 170m A with a maximum resistance of 2.2 Ohm. This device is made with wirewound technology. This product is 3.5 mm long, 2.2 mm tall and 2.7 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 16M Hz. It has a tolerance of 5%. It has an inductance of 15u H.
安富利:
Ind General Purpose Chip Unshielded Wirewound 15uH 5% 1MHz 35Q-Factor Ferrite 170mA 1210 Embossed T/R
Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 15uH 5% 1MHz 35Q-Factor Ferrite 170mA 2.2Ohm DCR 1210 T/R
Verical:
Inductor General Purpose Chip Unshielded Wirewound 15uH 5% 1MHz 35Q-Factor Ferrite 0.17A 2.2Ohm DCR 1210 T/R
儒卓力:
**LQH32MN 15uH 170mA 5% WWT **
Win Source:
15μH Unshielded Wirewound Inductor 170mA 2.2 Ohm Max 1210 3225 Metric
额定电流 170 mA
容差 ±5 %
电感 15 µH
自谐频率 16 MHz
产品系列 LQH
电感公差 ±5 %
测试频率 1 MHz
电阻DC) ≤2.2 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 2.2 Ω
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2 mm
封装公制 3225
封装 1210
重量 0.060 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
