LB1935FA-BH

步进电机驱动器IC Stepping Motor Driver IC

LB1935FA is IC with forward/reverse motor drive 2-channel in which low saturation voltage and low voltage operation possible. Its small sized package is optimal for 2 phase excitation drive of 2 phase bipolar stepping motors for various portable devices such as digital still cameras.

Features

---

 |

.

Low saturation voltage, VO sat = 0.3V typ at IO = 150mA

.

Built-in shoot-through current protection circuit

.

No standby current consumption or zero

.

Built-in thermal shutdown circuit

.

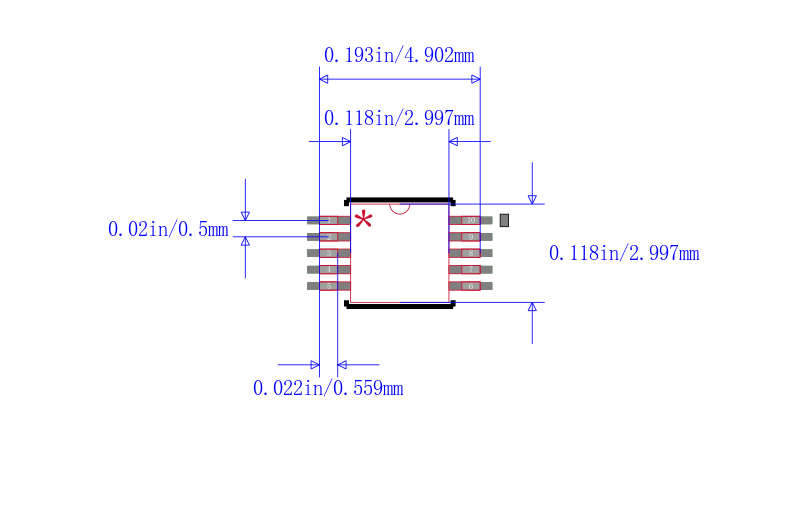

Micro10 small-sized package
