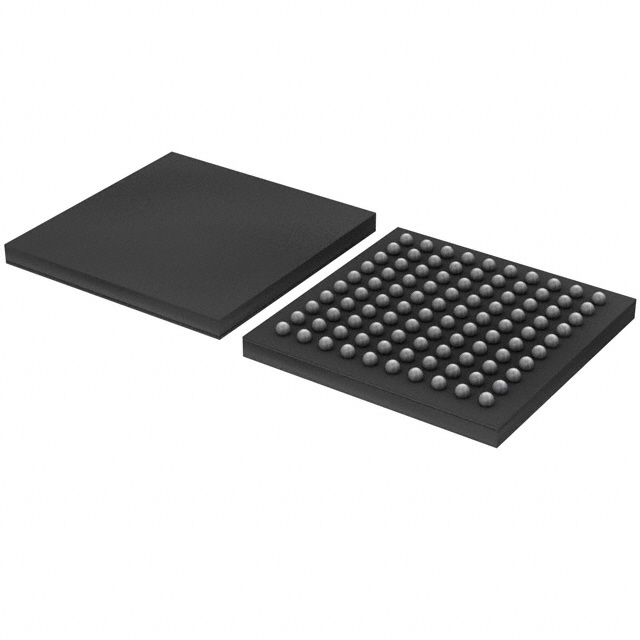

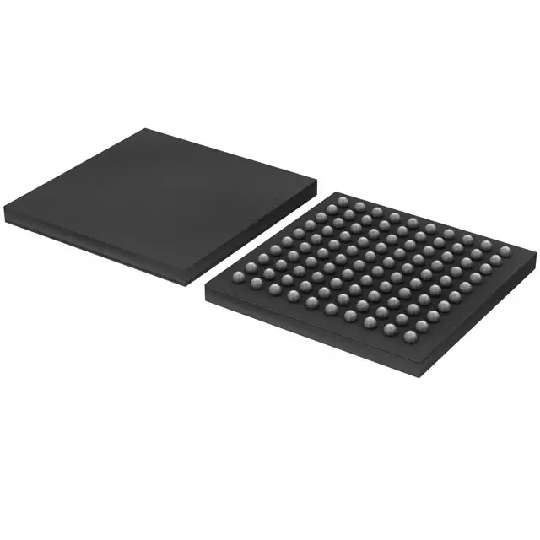

NXP LPC4322JET100E 微控制器, 32位, ARM 皮质-M4, 204 MHz, 512 KB, 104 KB, 100 引脚, TFBGA
ARM® Cortex®-M4/M0 series IC 32 位双核 204MHz 512KB（512K x 8） 闪存 100-TFBGA（9x9）
得捷:
IC MCU 32BIT 512KB FLSH 100TFBGA
立创商城:
ARM Cortex-M0 ARM Cortex-M4 204MHz 闪存：512K@x8bit RAM：104KB
e络盟:
ARM MCU微控制单元, LPC Family LPC4300 Series Microcontrollers, ARM 皮质-M4, 32位, 204 MHz, 512 KB, 104 KB
艾睿:
With the LPC4322JET100E microcontroller from NXP Semiconductors, you can program a circuit to perform tasks that meet your desired specifications. This microcontroller has an operating temperature range of -40 °C to 105 °C. It has a maximum clock speed of 204 MHz. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.2 V, while its maximum is 3.6 V. This is a 32 bit processor. This device is based on the ARM Cortex M4/M0 core architecture. Its ADC resolution is 10/10. Its flash program memory is 512KB.
安富利:
MCU 32-bit LPC4300 ARM Cortex M4/M0 RISC 512KB Flash 3.3V 100-Pin TF-BGA Tray
Chip1Stop:
MCU 32-bit LPC4300 ARM Cortex M4/M0 RISC 512KB Flash 3.3V 100-Pin TFBGA Tray
电源电压DC 2.20V min
针脚数 100
时钟频率 204 MHz
RAM大小 104 KB
位数 32
FLASH内存容量 512 KB
模数转换数ADC 2
输入/输出数 49 Input
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 1500 mW
数模转换数DAC 1
电源电压Max 3.6 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 100
封装 TFBGA-100
封装 TFBGA-100
重量 165.64082583 mg
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tray
制造应用 工业, 电机驱动与控制, Power Management, 电源管理, Audio, Motor Drive & Control, 音频, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
