LTM2893IY#PBF

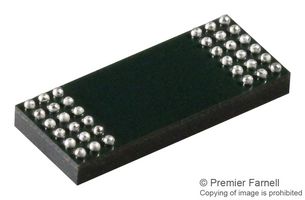

LINEAR TECHNOLOGY LTM2893IY#PBF Digital Isolator, 6kV, 4Channel, 80ns, 3V, 5.5V, BGA, 36Pins New

The is a 100MHz isolated ADC serial interface in 36 pin BGA package. It is a high speed isolated µModule micro module SPI interface with ADC control signals. The device is optimized for isolating 1Msps high resolution 18bit SAR ADCs such as the LTC2338 and similar families and can interface with most general purpose ADCs. The LTM2893 isolates conversion start, sampling signal with very low aperture jitter 30ps and low latency 20ns. The interface enables fast throughput with no cycle latency which makes the LTM2893 ideally suited for a wide variety of applications. It has a high speed SPI compatible serial port that supports 1.71V to 5.5V logic and is configurable for ADCs with 8bit to 32bit SPI word lengths. Uninterrupted communication is maintained during voltage transients greater than 50KV/µs. It is used in remote sensing, high speed data acquisition, test and measurement equipments.

.

Isolated interface 6000Vrms for 1minute

.

100MHz SPI compatible I/O

.

Configurable SPI word length from 8bit to 32bit

.

Low jitter conversion start 30psRMS

.

Supports simultaneously sampled ADCs

.

Read only, three isolated multiplexer select signals

.

1.71V to 5.5V I/O voltage and 3V to 5.5V supply voltage

.

High common mode transient immunity

.

Operating supply current of 9mA

.

Operating temperature range from -40°C to 85°C
