LRS-150-48

LRS-150 系列 150 W 单输出 48 V 封闭式 开关电源

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

No load power consumption less than 0.5W

Miniature size and 1U low profile

High operation temperature up to 70 deg.C

Short circuit/Overload/Over voltage/Over temperature protections

Cooling by free air convection

Compliance to IEC/EN 60335-1PD3 and IEC/EN61558-1, 2-16 for household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

High efficiency, long life and high reliability

LED indicator for power on

100 percent full load burn-in test

3 years warranty

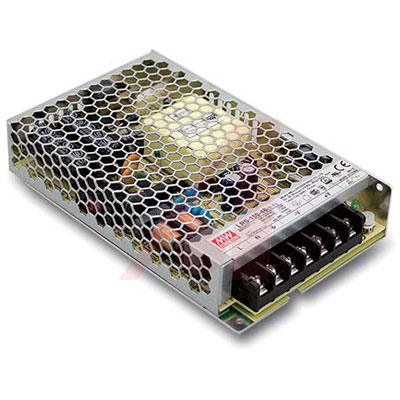

LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230 VACselectable by switch, the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90 percent, the design of metallic mesh case enhances the heat dissipation of the LRS-150 that the whole series operates from -30 deg.C through 70 deg.C under air convection without a fan. Delivering an extremely low no load power consumption less than 0.5W, it allows the end system to easily meet the worldwide energy requirement. LRS-150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety requlations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series serves as a high performance-to-price power supply solution for various industrial applications.
