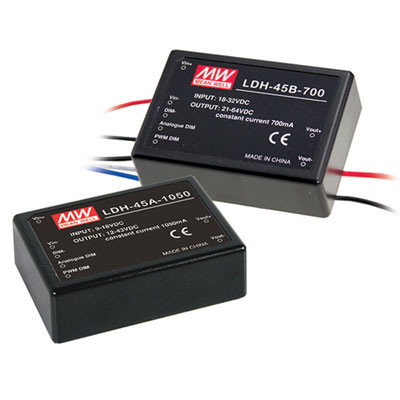

Power Supply; DC-DC; 45W, LED Driver, In18-32V 2A 21-64V 700mA
700mA 21 ~ 64V Constant Current LED Driver Boost Topology 1 Output
得捷:
LED DRVR CC BOOST 21-64V 700MA
贸泽:
LED Power Supplies 18-32Vin 21-64Vout 700mA 44.8W wire CC
艾睿:
DC/DC LED Power Supply 44.8W Single 7-Pin
Allied Electronics:
Power Supply; DC-DC; 45W, LED Driver, In18-32V 2A 21-64V 700mA
Jameco:
DC to DC Step Up Constant Current LED Driver 24 Volts 700 Milliamps 44.8 Watts
安富利:
LED DRVR Module 1-CH Analog/PWM 64V 0.7A
TME:
Converter: DC/DC; 44W; Uin:18÷32V; Uout:21÷64VDC; Iin:2A; 138g
CDI:
DC-DC 44.8W 700mA Step-Up Constant Current LED Driver 24VDC Input
额定功率 44 W
输出接口数 1
输入电压DC 18V ~ 32V
输出电压 21.64 VDC
输出电流 0.7 A
通道数 1
输入电流 2 A
输出功率 44.8 W
输入电压DC Max 32 V
输入电压DC Min 18 v
输出电压Max 64 V
输出电压Min 21 V
输出电流Max 700 mA
输入电流Min 2 A
输出功率Max 44.8 W
工作温度Max 70 ℃
工作温度Min -40 ℃
输入电压 18VDC ~ 32VDC
引脚数 7
封装 BULK
长度 75 mm
宽度 53 mm
高度 22.7 mm
封装 BULK
电缆长度 100 mm
重量 138 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
