MC21206A6W-SPTLY

MIDAS  MC21206A6W-SPTLY  字母数字液晶屏, 12 x 2, 黄绿底黑色字, 5 V, 并行, 英式, 日式, 半透反射

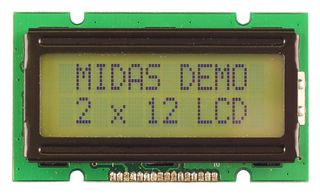

* Alphanumeric / character LCD module

.

2 lines of 12 characters - 2 x 12 also referred to as 12 x 2

.

Positive mode yellow/green STN material

.

Appearance - blue/black characters on yellow/green background

.

Transflective technology, generally for indoor and outdoor applications

.

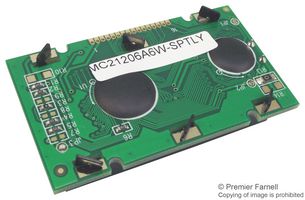

Chip on board construction COB for easy mounting

.

On board controller SPLC780 or equivalent HD44780 derivative

.

English/Japanese font sets

.

5V logic supply, standard parallel interface

.

Display duty 1/16, Driving bias 1/5

.

Yellow/green LED backlight

.

Preferred view angle - 6 o"clock

.

-20 to +70°C wide operating temperature range

.

16 way through hole SIL bottom, centre connection, 2.54mm pitch

.

Overall max dimensions - 55.7 x 32.0 x 15.0mm

.

Viewing area - 45.0 x 15.5mm

.

5mm character actual dimension 2.65 x 5.50mm
