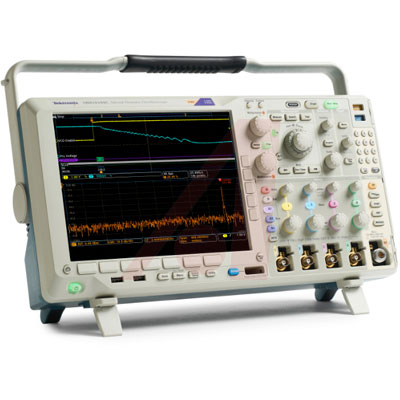

Oscilloscope, MDO4000C Series, 4Channel, 1GHz, 5GSPS, 350 ps
Introducing the world"s highest performance 6-in-1 integrated oscilloscope that includes a spectrum analyzer, arbitrary/function generator, logic analyzer, protocol analyzer and DVM / frequency counter. The MDO4000C Series has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications IoT and EMI troubleshooting. The MDO4000C is completely customizable and fully upgradeable so you can add the instruments you need now – or later.
**_Typical applications_**
Embedded design
Power design
EMI troubleshooting
Wireless troubleshooting
Education
Manufacturing Test and Troubleshooting
**_Key performance specifications_**
**Oscilloscope**
* 4 analog channels
* 1 GHz, 500 MHz, 350 MHz, and 200 MHz bandwidth models
* Bandwidth is upgradeable up to 1 GHz
* Up to 5 GS/s sample rate
* 20 M record length on all channels
* > 340,000 wfm/s maximum waveform capture rate
* Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz or 500 MHz analog bandwidth
**Spectrum Analyzer Optional**
* Frequency range of 9 kHz - 3 GHz or 9 KHz - 6 GHz
* Ultra-wide capture bandwidth =1 GHz
* Time-synchronized capture of spectrum analyzer with analog and digital acquisitions
* Frequency vs. time, amplitude vs. time, and phase vs. time waveforms
**Arbitrary/Function Generator Optional**
* 13 predefined waveform types
* 50 MHz waveform generation
* 128 k arbitrary generator record length
* 250 MS/s arbitrary generator sample rate
**Logic Analyzer Optional**
* 16 digital channels
* 20 M record length on all channels
* 60.6 ps timing resolution
**Protocol Analyzer Optional**
* Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0,
* Ethernet, CAN, LIN, FlexRay, MIL-STD-1553, and Audio standards
**Digital Voltmeter / Frequency Counter Free with product registration**
* 4-digit AC RMS, DC, and AC+DC RMS voltage measurements
* 5-digit frequency measurements
