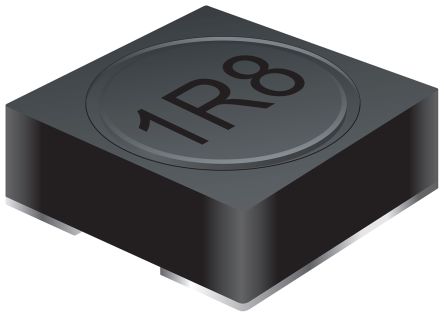

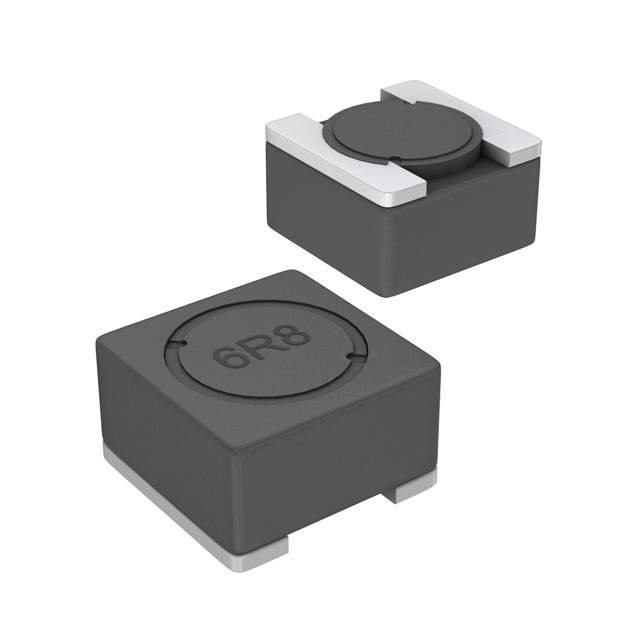

BOURNS SRR4028-220Y 电感, 22uH, 930mA, 30%, SMD
SRR4028 系列磁性屏蔽线绕器
最高高度为 3.0mm
额定电流高达 3.1A
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 22UH 930MA 185MOHM SMD
立创商城:
22uH ±30% 930mA 185mΩ
欧时:
Bourns SRR4028 系列 屏蔽 铁氧体芯材 22 μH 绕线贴片电感器 SRR4028-220Y, 3.1A Idc Q:8.26
e络盟:
电感, 22uH, 930mA, 30%, SMD
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR4028-220Y surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 23MTyp Hz. This product is 5 mm long, 3 mm tall and 5 mm deep. This device is made with wirewound technology. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 930m A with a maximum resistance of 185m Ohm.
Allied Electronics:
Power inductor SMD shielded 22uH 0.93A
Chip1Stop:
Ind Power Shielded Wirewound 22uH 30% 100KHz 8.26Q-Factor Ferrite 930mA T/R
Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 8.26Q-Factor Ferrite 0.93A 0.185Ohm DCR T/R
Newark:
# BOURNS SRR4028-220Y Surface Mount Power Inductor, SRR4028 Series, 22 µH, 930 mA, 720 mA, Shielded, 0.185 ohm
MASTER:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 8.26Q-Factor Ferrite 930mA 185mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 8.26Q-Factor Ferrite 930mA 185mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 8.26Q-Factor Ferrite 930mA 185mOhm DCR T/R
额定电流 930 mA
容差 ±30 %
电感 22 µH
自谐频率 23 MHz
Q值 8.78
电感公差 ±30 %
测试频率 0.1 MHz
电阻DC) ≤185 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.185 Ω
安装方式 Surface Mount
封装 4.8mm x 4.8mm x 2.8mm
长度 4.8 mm
宽度 4.8 mm
高度 3 mm
封装 4.8mm x 4.8mm x 2.8mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
香港进出口证 NLR
