SDR1006-472KL

BOURNS  SDR1006-472KL  表面贴装功率电感器, SDR1006系列, 4.7 mH, ± 10%, 非屏蔽, 18 ohm, 100 mA

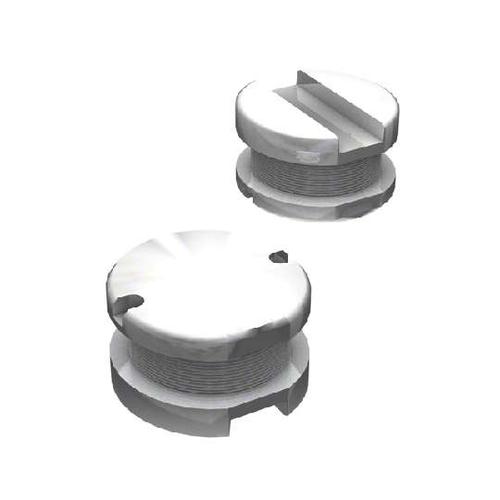

SDR1006 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 9.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 4.7MH 100MA 18 OHM SMD

欧时:
Bourns SDR1006 系列 铁氧体芯材 4.7 mH 绕线贴片电感器 SDR1006-472KL, ±10%容差, 240mA Idc Q:32

贸泽:
Fixed Inductors 4700uH 10% SMD 1006

e络盟:
功率电感SMD, 4.7 mH, 100 mA, 非屏蔽, 240 mA, SDR1006系列, 9.8mm x 9.8mm x 5.8mm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR1006-472KL surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. It has a tolerance of 10%. This product is 5.8 mm tall with a diameter of 9.8 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 800K Hz. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 18 Ohm. It has an inductance of 4.7m H.

Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 4700uH; 10%; 0.1A

安富利:
Ind Power Wirewound 4.7mH 10% 1KHz 32Q-Factor Ferrite 100mA T/R

Chip1Stop:
Inductor Power Wirewound 4.7mH 10% 1KHz 32Q-Factor Ferrite 100mA 18Ohm DCR T/R

TME:
Inductor: wire; SMD; 4.7mH; 100mA; ±10%; Q:32; Ø:10mm; H:6mm; 18Ω

Verical:
Inductor Power Unshielded Wirewound 4700uH 10% 1KHz 32Q-Factor Ferrite 0.1A 18Ohm DCR T/R

Newark:
# BOURNS  SDR1006-472KL  Surface Mount Power Inductor, SDR1006 Series, 4.7 mH, 100 mA, 240 mA, Unshielded, 18 ohm

MASTER:
Inductor Power Wirewound 4.7mH 10% 1KHz 32Q-Factor Ferrite 100mA 18Ohm DCR T/R

Online Components:
Inductor Power Wirewound 4.7mH 10% 1KHz 32Q-Factor Ferrite 100mA 18Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 4.7mH 10% 1KHz 32Q-Factor Ferrite 100mA 18Ohm DCR T/R
