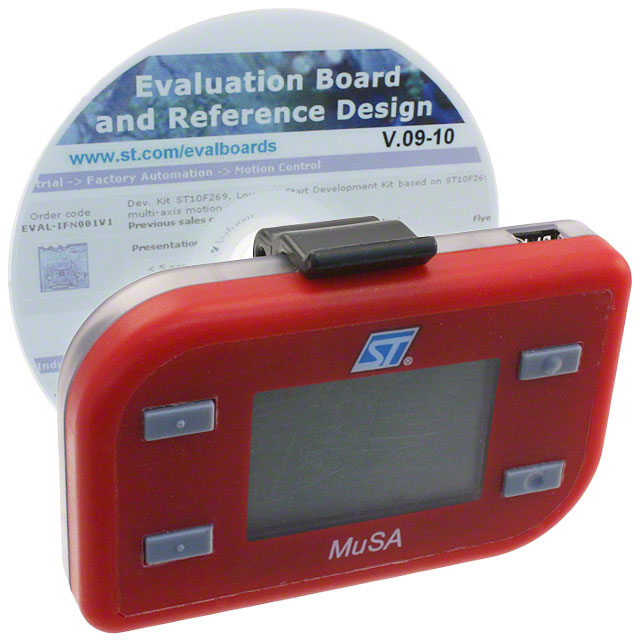

STMICROELECTRONICS STEVAL-MKI031V1 Multi Sensor Evaluation Board with Black and White LCD Display
MuSA multi sensor application board platform is intended to demonstrate the performance and possible uses of MEMS devices. The MuSA platform is based on an ST7 8bit microcontroller, which manages the output signals from the MEMS accelerometer. The platform comes with the LIS331DLH pre installed on the board. The MuSA platform features four buttons for navigating the menus. A mini USB connector is available to exchange data with a PC, depending on the specific application, and also recharges the internal Li ion battery. The battery is capable of providing power for approximately 7 hours of operation. A USB interface is available for firmware upgrades DFU, and for exchanging data with user developed software running on a host PC.
- .
- Multi pole connector for platform expansion using sensor specific modules
- .
- 4 buttons for menu navigation
- .
- 128 x 64 pixel, black and white LCD
- .
- Piezoelectric buzzer
- .
- MicroSD socket for data logging applications
When charging battery, MuSA must be SWITCHED OFF before plugging the USB cable into PC. MuSA automatically switches on after being plugged into the USB cable. Do not move switch until USB is powered.
