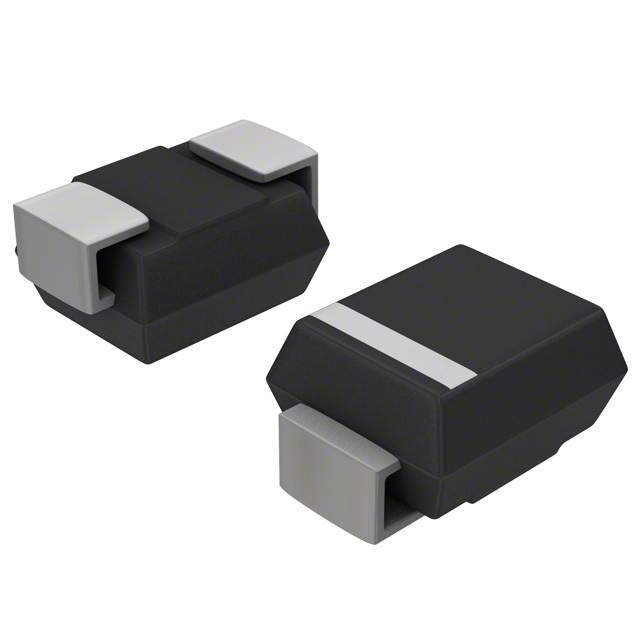

超快恢复二极管 Ultrafast recovery diode
Switch from an AC voltage to a DC voltage using a switching diode rectifier from STMicroelectronics. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration.
正向电压 1.5V @1A
热阻 35℃/W RθJL
反向恢复时间 30 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.5V @1A
正向电流Max 1000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Surface Mount
引脚数 2
封装 SMA
长度 4.6 mm
宽度 2.95 mm
高度 2.03 mm
封装 SMA
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
