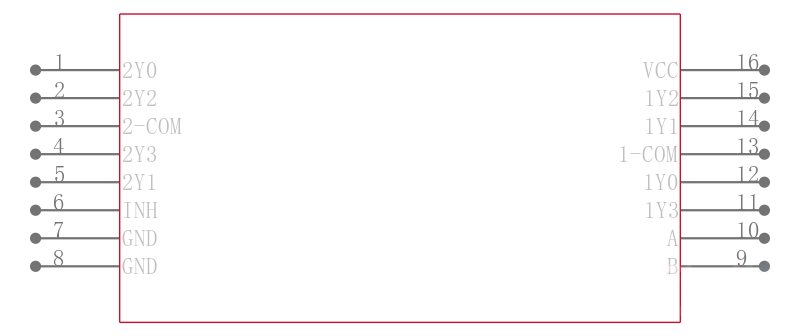

SN74LV4052ADG4

DEAL 4通道模拟多路复用器/多路解复用器 DEAL 4-CHANNEL ANALOG MULTIPLEXERS/DEMULTIPLEXERS

DESCRIPON

These dual 4-channel CMOS analog multiplexers/demultiplexers are designed for 2-V to 5.5-V VCC operation. The ’LV4052A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V peak to be transmitted in either direction.

Applications include signal gating, chopping, modulation or demodulation modem, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

1FEATURES

• 2-V to 5.5-V VCC Operation

• Fast Switching

• High On-Off Output-Voltage Ratio

• Low Crosstalk Between Switches

• Extremely Low Input Current

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101
