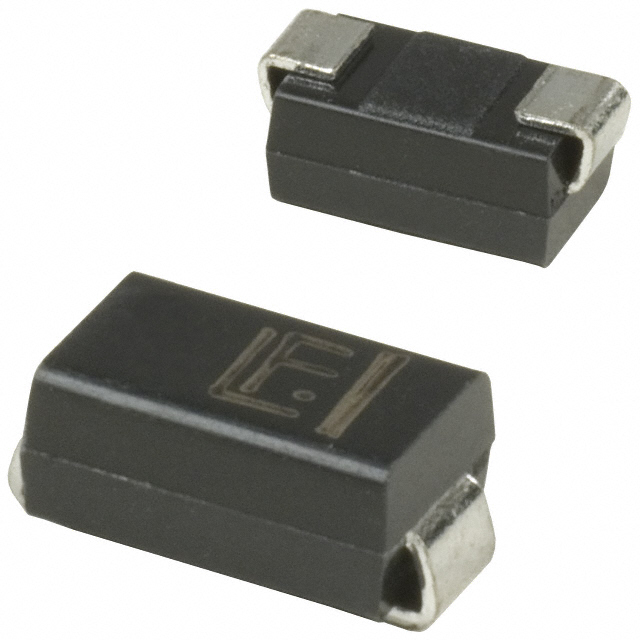

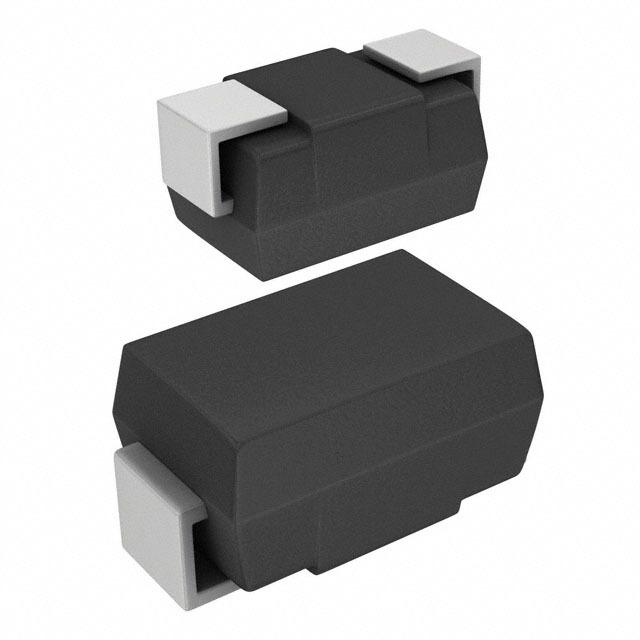

Trans Voltage Suppressor Diode, 400W, 220V VRWM, Bidirectional, 1Element, Silicon, DO-214AC, HALOGEN FREE, SMAJ, 2Pin
GENERAL DESCRIPTION
The SMAJ, SMBJ, and SMCJ Series are a popular format of general purpose transient voltage suppression diodes. They are based on the low leakage, high reliability, but low cost glass passivated chip rectifier technology.
FEATURES
• Glass passivated chip
• 400W, 600W and 1500W types 10/1000us
• Low leakage
• Flat clamping
• Very fast response time
• Halogen Free
• ≤1μA leakage for 12V and up
• Lead-Free Terminations
APPLICATIONS
• Consumer
• Industrial
• Telecom
• Computer
电路数 1
钳位电压 356 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 246 V
击穿电压 246 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.5 mm
宽度 2.79 mm
高度 2.29 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ220CA AVX 艾维克斯 | 当前型号 | 当前型号 |
SMAJ188CA-TR 意法半导体 | 功能相似 | SMAJ220CA和SMAJ188CA-TR的区别 |
P4SMA250CA 伯恩斯 | 功能相似 | SMAJ220CA和P4SMA250CA的区别 |
SMAJ220CA-TP 美微科 | 功能相似 | SMAJ220CA和SMAJ220CA-TP的区别 |
