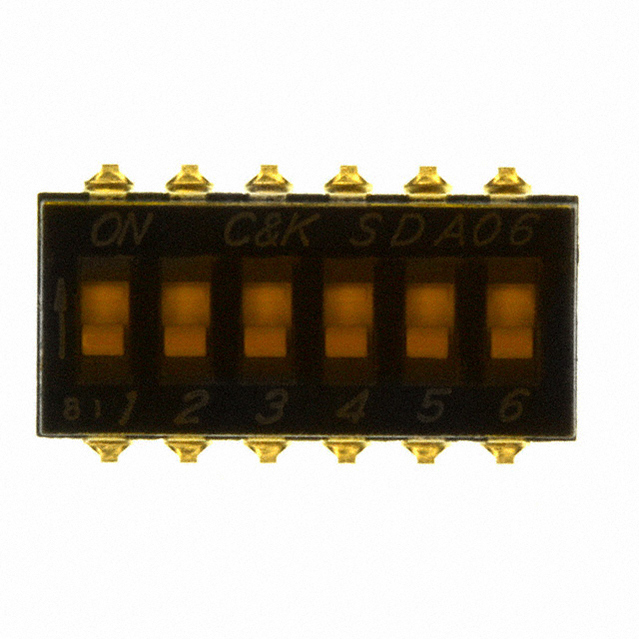

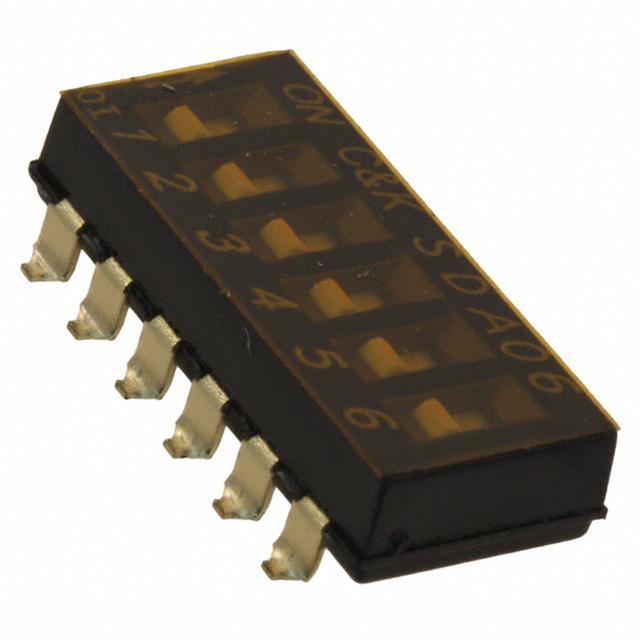

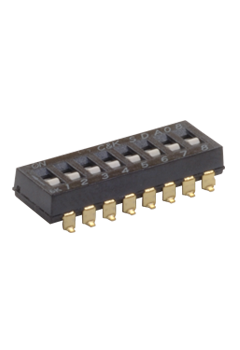

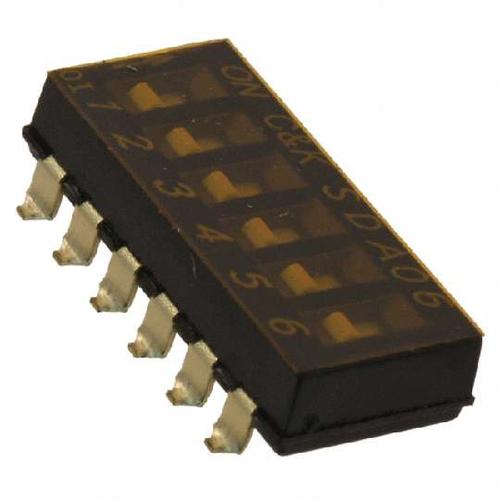

SDA 系列 单刀单掷 6 位置 表面贴装 薄型 Dip 开关
Low Profile DIP
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
立创商城:
SDA06H0SBR
贸泽:
DIP Switches / SIP Switches Sw DIP ON OFF SPST 6 Flsh Slid 0.1A 50VDC
艾睿:
Use C&a;K Components&s; SDA06H0SBR dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The SDA06H0SBR DIP switch has a gull wing termination style. This product is 17.18 mm long, 4.45 mm tall and 9.3 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm.
Allied Electronics:
Switch DIP OFF ON SPST 6 Flush Slide 0.1A 24VDC Gu
安富利:
Switch DIP OFF ON SPST 6 Recessed Slide 0.1A 50VDC Gull Wing 1000Cycle 2.54mm SMD T/R
Chip1Stop:
Switch DIP OFF ON SPST 6 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
TME:
Switch: DIP-SWITCH; Poles number:6; OFF-ON; 0.025A/24VDC; 100MΩ
Verical:
Switch DIP OFF ON SPST 6 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
Newark:
# C & K COMPONENTS SDA06H0SBR DIP / Rotary DIP
MASTER:
Low Profile DIP
Online Components:
Low Profile DIP
Electro Sonic:
Low Profile DIP
Win Source:
SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 6 Position Surface Mount Slide Standard Actuator 25mA 24VDC
额定电压DC 24 V
额定电流 25 mA
针脚数 6
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP
长度 17.17 mm
高度 4.45 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDA06H0SBR C&K Components | 当前型号 | 当前型号 |
SDA06H0SB C&K Components | 完全替代 | SDA06H0SBR和SDA06H0SB的区别 |
SDA06H0SBD C&K Components | 完全替代 | SDA06H0SBR和SDA06H0SBD的区别 |
SDA06H0SKR C&K Components | 完全替代 | SDA06H0SBR和SDA06H0SKR的区别 |
