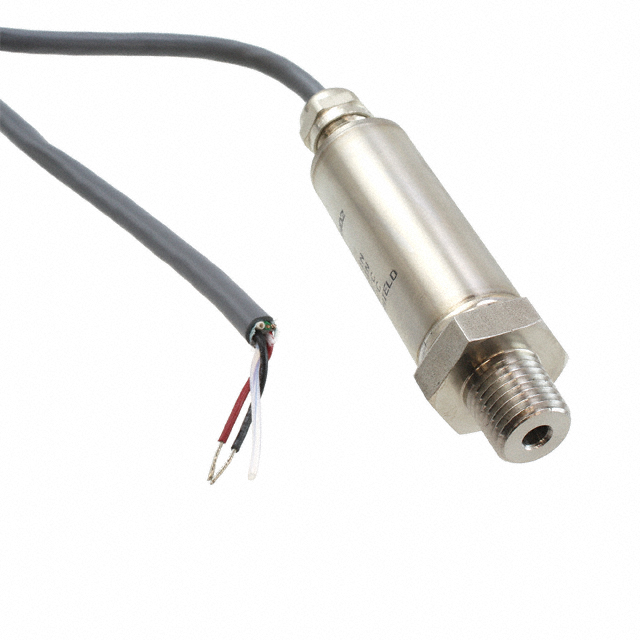

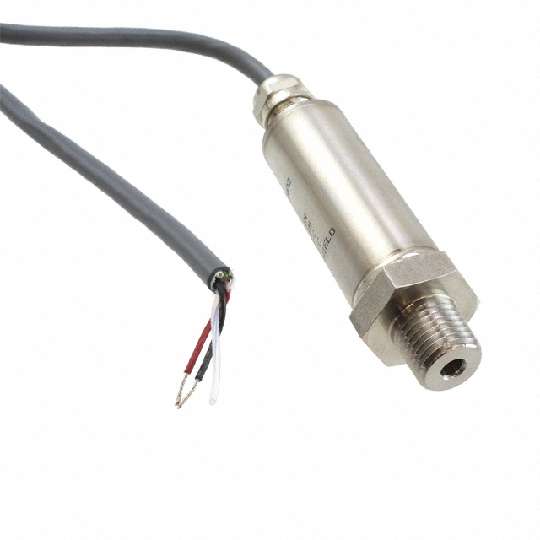

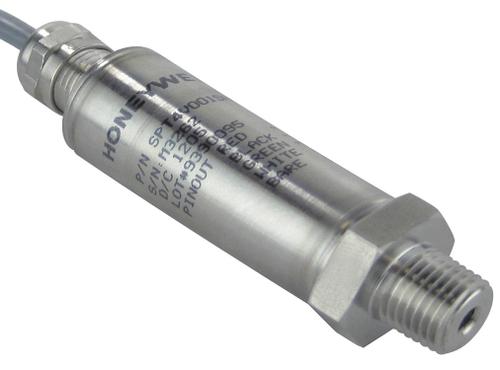

SPTMA0500PG5W02

Industrial Pressure Sensors 0 psi to 500psi min 10VDC max 24VDC

"s SPT Series stainless steel pressure transducers are designed for pressure applications that involve measurement of hostile media in harsh environments and will accommodate any media that will not adversely attack 304 or 316 stainless steel wetted parts. The SPT Series is calibrated and compensated for three styles of

.

*Output:** 4.0 mA to 20.0 mA mA version; 1.0 VDC to 5.0 VDC 4 V version; and 0 mV to 100 mV mV version. All versions feature a variety of pressure connections to allow use in a wide range of OEM Original Equipment Manufacturer equipment. The SPT Series stainless steel devices are rugged and reliable transducers for use in a wide variety of pressure sensing applications where corrosive liquids and gases are monitored. **Features:**

* Reliable Semiconductor Technology

* Calibrated and Temperature Compensated

* Rugged, Stainless Steel Package

* NEMA 4 Design

* Absolute, Gage, Sealed Gage, Vacuum Gage Pressures

* 0 PSI to 3 PSI, 0 PSI to 5000 PSI **Typical Applications:**

* Industrial Automation and Flow Control

* Pressure Instrumentation

* Hydraulic Systems

* Process Control
