ST3241ECPR

【 15kV ESD保护3至5.5V ， 400kbps的， RS - 232收发器，支持自动POWERDOWN 【15KV ESD PROTECTED 3 TO 5.5V, 400KBPS, RS-232 TRANSCEIVER WITH AUTO-POWERDOWN

The ST3241E device consists of 3 drivers, 5 receivers, and a dual charge-pump circuit. The device meets the requirements of EIA/TIA and V.28/V.24 communication standards providing high data rate capability and enhanced electrostatic discharge ESD protection. All transmitter outputs and receiver inputs are protected to ±8 kV using IEC 1000-4-2 contact discharge and ±15 kV using the human body model. The receiver R2 is always active to implement a wake-up feature for the serial port.

The ST3241E has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0 V to 5.5 V supply with a dual charge pump. The device is guaranteed to run at data rates of 250 kbps while maintaining RS-232 output levels.

It is a complete serial port 3 drivers, 5 receivers intended for notebook or sub-notebook computers. Receivers R1 and R2 have extra outputs in addition to their standard outputs. These extra outputs are always active.

Typical applications are in notebooks, sub-notebooks, palmtop computers, battery-powered equipment, hand-held equipment, peripherals, and printers.

**Key Features**

.

ESD protection for RS-232 I/O pins: ±8 kV IEC 1000-4-2 contact discharge ±15 kV human body model

.

1 µA supply current achieved when in auto power-down

.

250 kbps minimum guaranteed data rate

.

Guaranteed 6 V/µs slew rate range

.

Guaranteed mouse drive ability

.

0.1 µF external capacitors

.

Meets EIA/TIA-232 specifications down to 3 V

.

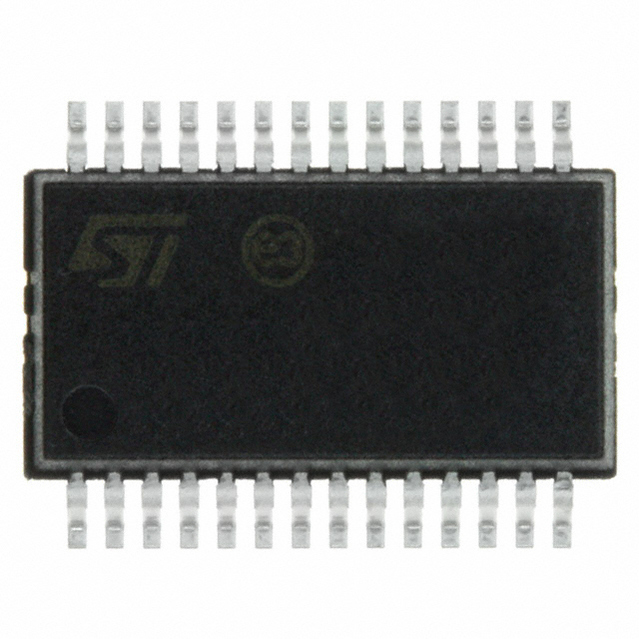

Available in SSOP 28 package
