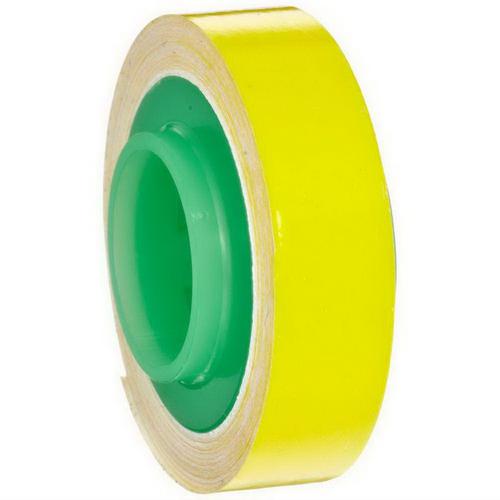

SDR-YL图片1

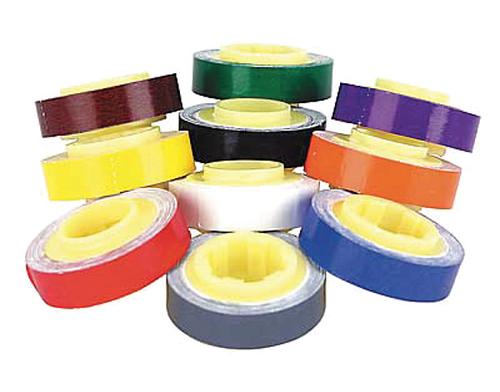

SDR-YL图片2

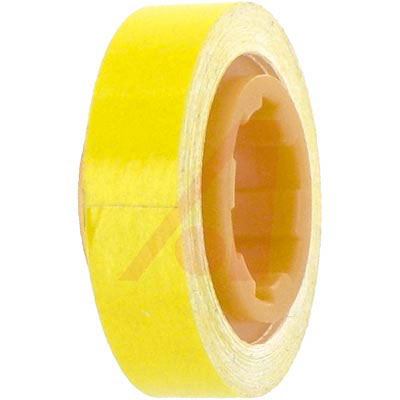

SDR-YL图片3

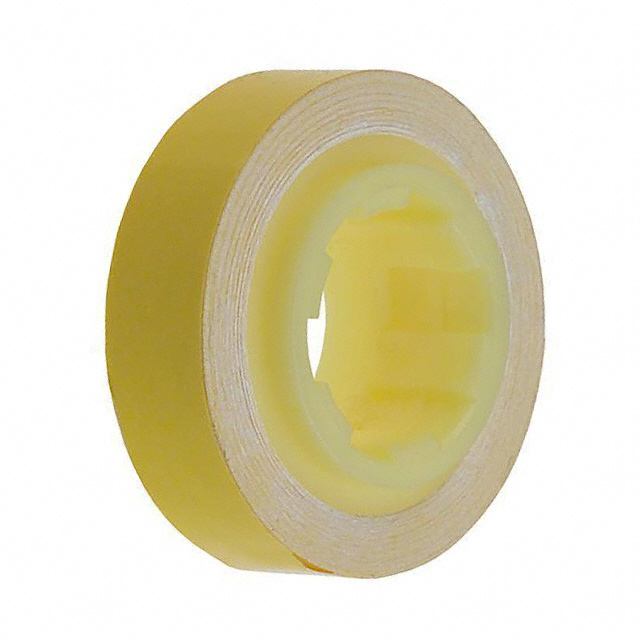

SDR-YL图片4
SDR-YL图片5
SDR-YL图片6
SDR-YL概述

电线标签和标记 MARKING YELLOW

SDR Wire Marking Tapes, 0.215 in. Width, 96 in. Length, 3 mils Thickness

5.5 mil reinforced flame-retardant epoxy film tape with an acrylic high tack pressure-sensitive adhesive. Tape resists abrasion, oil and water. Excellent adhesion to clean Neoprene™, Hypalon, nylon and PVC insulation materials.

SDR is a polyester film tape with an acrylic pressure sensitive adhesive, the tape is used in the tape dispenser. From the dispenser, the user can pull out and tear off the amount of tape needed for their particular application such as marking wires, terminal blocks and panels.

SDR-YL中文资料参数规格
技术参数

工作温度Max 121 ℃

工作温度Min -40 ℃

外形尺寸

长度 2438.4 mm

宽度 0.215 in

物理参数

颜色 Yellow

材质 Polyester

工作温度 -40℃ ~ 121℃

其他

产品生命周期 Active

包装方式 Roll

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SDR-YL
型号: SDR-YL
制造商: 3M
描述:电线标签和标记 MARKING YELLOW
