SRR1208-120ML

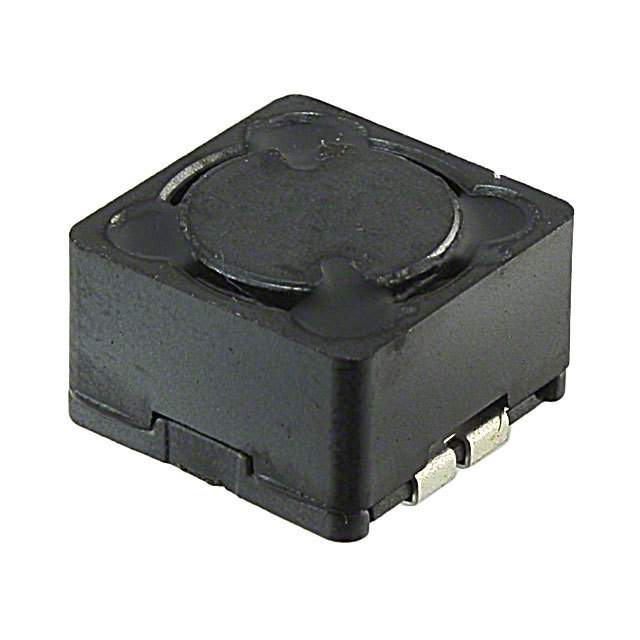

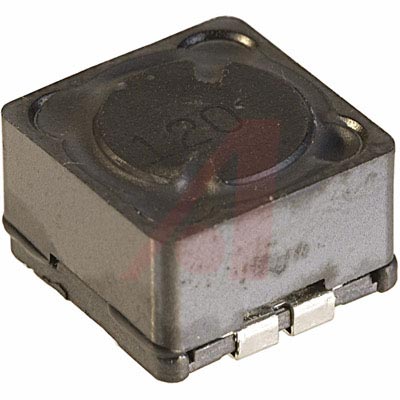

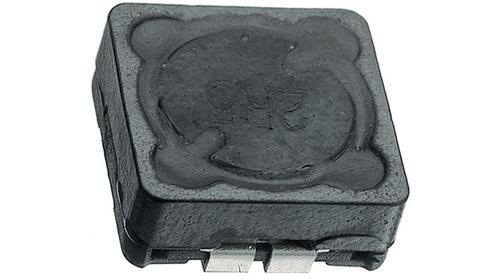

BOURNS  SRR1208-120ML  磁性屏蔽功率电感

SRR1208 Series Shielded High Power Inductors

** Features

**

* Ferrite DR and RI Core

* Current Up to 7.5 A

** Applications**

* Input/Output of DC/DC Converters

* Power Supplies for:

Portable Communication Equipment

Camcorders

LCD TVs

Car Radios

得捷:
FIXED IND 12UH 4.8A 25 MOHM SMD

欧时:
Ind12.7x12.7x8.5mm,12uH20%4.8A,shdSMD

立创商城:
12uH ±20% 4.8A 25mΩ

e络盟:
功率电感SMD, 12 µH, 4.8 A, 屏蔽, 6.5 A, SRR1208 Series, 12.7mm x 12.7mm x 8.5mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR1208-120ML surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 11M Hz. This SMD inductor has a maximum DC current of 4.8 A with a maximum resistance of 25m Ohm. This device utilizes wirewound technology. It has an inductance of 12u H. It has a tolerance of 20%. This product is 13 mm long, 8.5 mm tall and 13 mm deep.

Allied Electronics:
Inductor; Filter; Ind 12uH; Tol 20%; Cur 4.8A; SMT; Case 1208; DCR 0.025 Ohms

安富利:
Ind Power Shielded Wirewound 12uH 20% 1KHz 19Q-Factor Ferrite 4.8A T/R

Chip1Stop:
Ind Power Shielded Wirewound 12uH 20% 1KHz 19Q-Factor Ferrite 4.8A T/R

Verical:
Inductor Power Shielded Wirewound 12uH 20% 1KHz 19Q-Factor Ferrite 4.8A 25mOhm DCR Automotive T/R

Newark:
# BOURNS  SRR1208-120ML  Surface Mount Power Inductor, SRR1208 Series, 12 µH, 4.8 A, 6.5 A, Shielded, 0.025 ohm

MASTER:
Inductor Power Shielded Wirewound 12uH 20% 1KHz 19Q-Factor Ferrite 4.8A 25mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 12uH 20% 1KHz 19Q-Factor Ferrite 4.8A 25mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 12uH 20% 1KHz 19Q-Factor Ferrite 4.8A 25mOhm DCR T/R
