4位同步二进制计数器 4-BIT SYNCHRONOUS BINARY COUNTERS
description
These synchronous, presettable counters feature an internal carry look-ahead for application in high-speed counting designs. The ’HC163 devices are 4-bit binary counters. Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincident with each other when instructed by the count-enable ENP, ENT inputs and internal gating. This mode of operation eliminates the output counting spikes normally associated with synchronous ripple-clock counters. A buffered clock CLK input triggers the four flip-flops on the rising positive-going edge of the clock waveform.
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 80-µA Max ICC
Typical tpd = 14 ns
±4-mA Output Drive at 5 V
Low Input Current of 1 µA Max
Internal Look-Ahead for Fast Counting
Carry Output for n-Bit Cascading
Synchronous Counting
Synchronously Programmable
电源电压DC 2.00V ~ 6.00V
输出接口数 4
时钟频率 44 MHz
位数 4
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

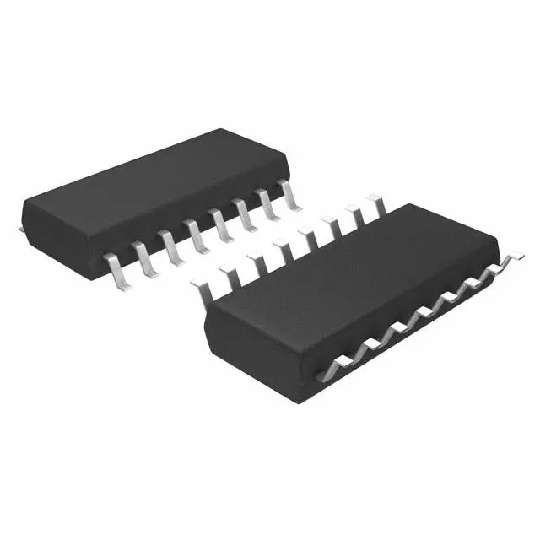

封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC163NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC163N 德州仪器 | 完全替代 | SN74HC163NSR和SN74HC163N的区别 |
SN74HC161DR 德州仪器 | 完全替代 | SN74HC163NSR和SN74HC161DR的区别 |
SN74HC161D 德州仪器 | 完全替代 | SN74HC163NSR和SN74HC161D的区别 |
