3.3V ABT八路透明D型锁存器3态输出 3.3V ABT OCTAL TRANSPARENT D TYPE LATCHES WITH 3 STATE OUTPUTS
D 型透明 通道 8:8 IC 三态 20-TSSOP
得捷:
IC OCT LATCH TRI-STATE 20-TSSOP
立创商城:
SN74LVTH573PWR
德州仪器TI:
3.3-V ABT Octal Transparent D-Type Latches With 3-State Outputs
贸泽:
Latches 3 St ABT Octal DType
艾睿:
Texas Instruments&s; d-type SN74LVTH573PWR low-level latch is an electronic circuit that can store state information and is used as data storage elements. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
安富利:
Latch Transparent 3-ST 8-CH D-Type 20-Pin TSSOP T/R
Chip1Stop:
Latch Transparent 3-ST 8-CH D-Type 20-Pin TSSOP T/R
Verical:
Latch Transparent 3-ST 8-CH D-Type 20-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS SN74LVTH573PWR Latch, LVT Family, 74LVT573, Transparent, Tri State, 4.5 ns, 64 mA, TSSOP
Win Source:
D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-TSSOP
DeviceMart:
IC OCT LATCH TRI-STATE 20-TSSOP
电源电压DC 2.70V ~ 3.60V
输出接口数 8
输出电流 64 mA
电路数 8
通道数 8
位数 8
极性 Non-Inverting
电压波节 3.30 V, 2.70 V
静态电流 5 mA
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 20

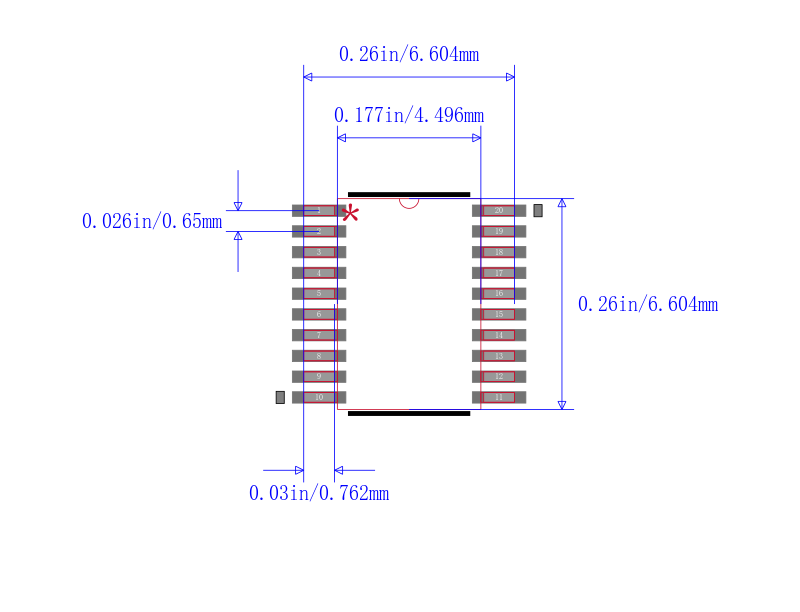

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVTH573PWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH573PW 德州仪器 | 完全替代 | SN74LVTH573PWR和SN74LVTH573PW的区别 |
SN74LVTH573IPWREP 德州仪器 | 类似代替 | SN74LVTH573PWR和SN74LVTH573IPWREP的区别 |
SN74LVTH573PWG4 德州仪器 | 类似代替 | SN74LVTH573PWR和SN74LVTH573PWG4的区别 |
