Wide Band High Power, 390MHz Min, 500MHz Max, 1 Func, BIPolar, 8 X 8MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-12
RF Amplifier IC GSM, NMT, TETRA, UHF, WLL 390MHz ~ 500MHz 12-MCM 8x8
得捷:
IC AMP GSM 390MHZ-500MHZ 12MCM
安富利:

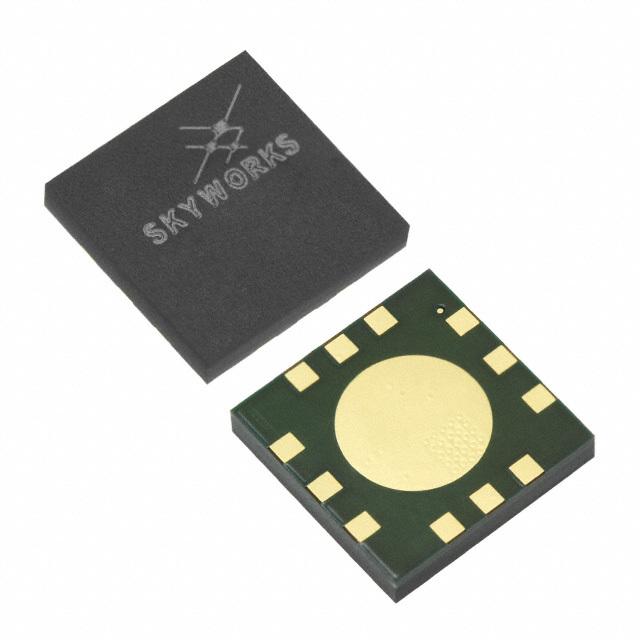

The SKY65116 is a fully matched, linear Power Amplifier PA, high linearity and high efficiency surface mount module designed for use in the 390 to 500 MHz band.The device is fabricated using Skyworks high reliability Gallium Arsenide GaAs Heterojunction Bipolar Transistor HBT process, which allows for single supply operation while maintaining high efficiency and good linearity. Microwave Monolithic Integrated Circuits MMICs, comprised of GaAs and Silicon CMOS, contain all the active circuitry in the module. This includes the in-module bias circuitry, as well as the RF interstage matching circuit. The input and output match is realized off-chip within the module package to optimize efficiency and high power performance P1 dB = +32.5 dBm into a 50Ω load.Primary bias to the SKY65116 can be supplied directly from a single cell lithium-ion or other suitable battery with a nominal output of 3.6 V. No external supply side switch is needed as typical “off” leakage is a few microamperes with full primary voltage supplied from the battery.The module can operate over the temperature range of –40 °C to +85 °C.The SKY65116 is provided in a low-cost, Surface Mount Technology SMT 8 x 8 mm Multi-Chip Module MCM package.
Verical:
RF Amp Chip Single Power Amp 500MHz 4V 12-Pin
DeviceMart:
IC AMP LINEAR 390-500MHZ 12-MCM
Win Source:
IC AMP LINEAR 390-500MHZ 12-MCM
