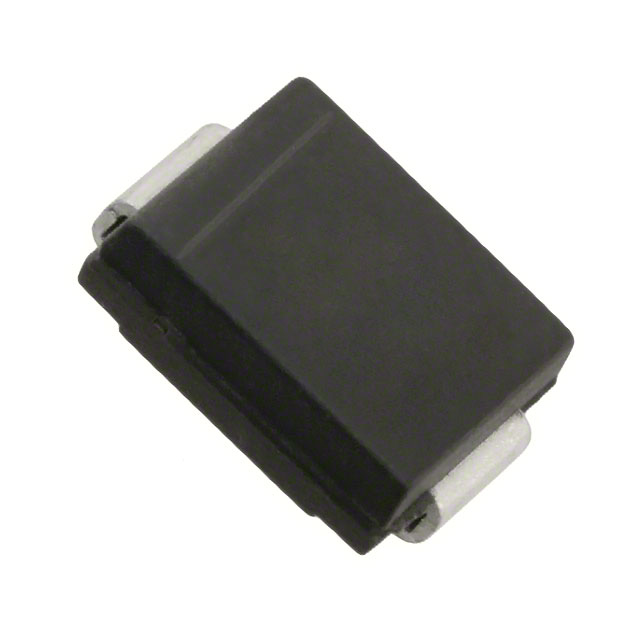

1500 W 30 V 单向 表面贴装 瞬态电压抑制二极管 - DO-214AB
Protect vulnerable electronic circuits against overvoltages by equipping your device with this TVS diode from Zetex. Its test current is 1 mA. This device"s maximum clamping voltage is 48.4 V and minimum breakdown voltage is 33.3 V. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
额定电压DC 30.0 V
工作电压 30 V
额定功率 1.50 kW
击穿电压 33.3 V
电路数 1
耗散功率 1500 W
钳位电压 48.4 V
最大反向电压（Vrrm） 30V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 33.3 V
击穿电压 33.3 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

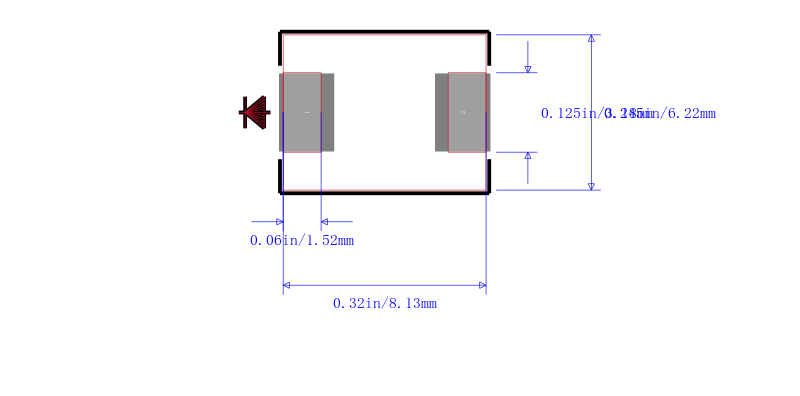

封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ30A-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMCJ30A-13 美台 | 完全替代 | SMCJ30A-13-F和SMCJ30A-13的区别 |
1SMC30AT3G 安森美 | 功能相似 | SMCJ30A-13-F和1SMC30AT3G的区别 |
SMCJ30A-TP 美微科 | 功能相似 | SMCJ30A-13-F和SMCJ30A-TP的区别 |
