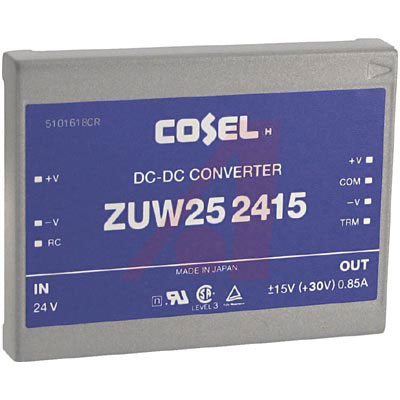

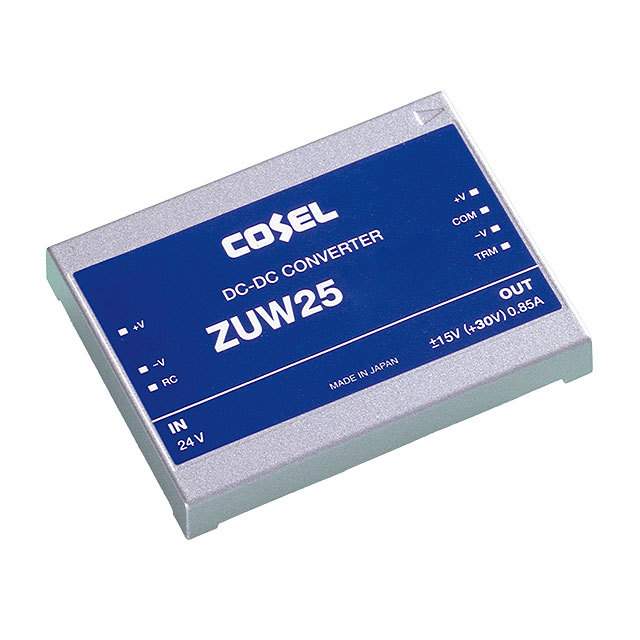

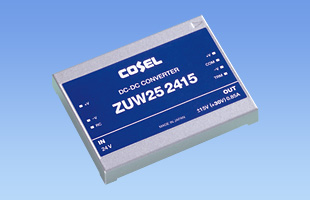

Module DC-DC 24Vin 2Out 15V/-15V 0.85A 25.5W 7Pin
Designed for Ultra Thin Profile, High Reliability and Low Cost.
* Thinnest Industry Available Profile: 1.5-10 Watts — 0.28"; 15-25 Watts — 0.33"
* High Quality — Field Failure Rate Less than 0.012%
* Wide Range Input Series: 4.5 to 72 VDC
* Over-Current Protection Circuitry
* Fully Regulated and Fully Isolated Between Input and Output
* Low EMI: 1.5-10 Watts — Brass Die-Cast Housing; 15-25 Watts — Aluminum Die-Cast Housing
* UL, CSA, TÜV Safety Approvals
* Five-Year Warranty
输出接口数 2
输出电压 ±15 V
输出电流 0.85 A
输入电流 1.25 A
输出功率 25.5 W
隔离电压 500 V
输入电压Max 36 V
输入电压Min 18 V
输出电流Max 850mA, 850mA
工作温度Max 71 ℃
工作温度Min -20 ℃
输入电压 24 V
安装方式 Through Hole
引脚数 7
封装 DIP-7
长度 1.97 in
宽度 2.56 in
高度 8.5 mm
封装 DIP-7
工作温度 -20℃ ~ 71℃
产品生命周期 Last Time Buy
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 PB free
