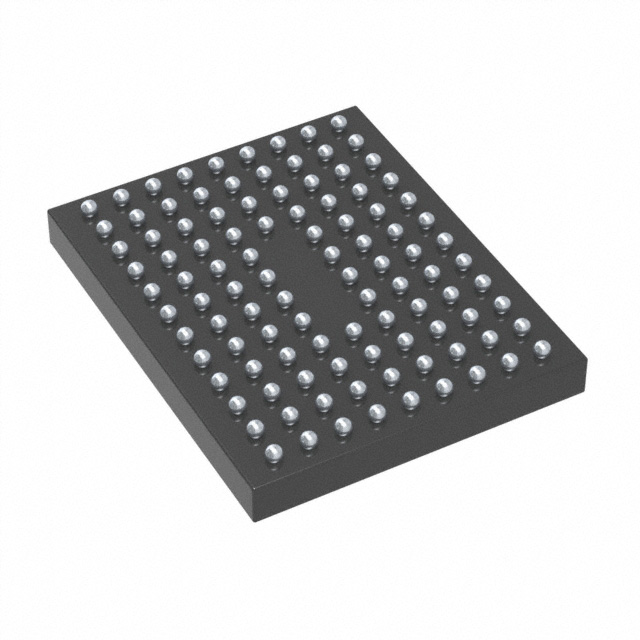

STM32L 系列 512 kB 闪存 80 kB SRAM 表面贴装 32位 微控制器 - WLCSP-104
The ultra-low-power STM32L151xE and STM32L152xE devices incorporate the connectivity power of the universal serial bus USB with the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a frequency of 32 MHz 33.3 DMIPS, a memory protection unit MPU, high-speed embedded memories Flash memory up to 512 Kbytes and RAM up to 80 Kbytes, and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
The STM32L151xE and STM32L152xE devices offer two operational amplifiers, one 12-bit ADC, two DACs, two ultra-low-power comparators, one general-purpose 32-bit timer, six general-purpose 16-bit timers and two basic timers, which can be used as time bases.
Moreover, the STM32L151xE and STM32L152xE devices contain standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2S, three USARTs, two UARTs and an USB. The STM32L151xE and STM32L152xE devices offer up to 34 capacitive sensing channels to simply add a touch sensing functionality to any application.
They also include a real-time clock and a set of backup registers that remain powered in Standby mode.
Finally, the integrated LCD controller except STM32L151xE devices has a built-in LCD voltage generator that allows to drive up to 8 multiplexed LCDs with the contrast independent of the supply voltage.
The ultra-low-power STM32L151xE and STM32L152xE devices operate from a 1.8 to 3.6 V power supply down to 1.65 V at power down with BOR and from a 1.65 to 3.6 V power supply without BOR option. They are available in the -40 to +85 °C and -40 to +105 °C temperature ranges. A comprehensive set of power-saving modes allows the design of low-power applications.
**Key Features**
-
.
-
Ultra-low-power platform
-
.
-
1.65 V to 3.6 V power supply
-
.
-
-40 °C to 105 °C temperature range
-
.
-
290 nA Standby mode 3 wakeup pins
-
.
-
1.11 µA Standby mode + RTC
-
.
-
560 nA Stop mode 16 wakeup lines
-
.
-
1.4 µA Stop mode + RTC
-
.
-
11 µA Low-power run mode down to 4.6 µA in Low-power sleep mode
-
.
-
195 µA/MHz Run mode
-
.
-
10 nA ultra-low I/O leakage
-
.
-
8 µs wakeup time
-
.
-
Core: ARM® Cortex® -M3 32-bit CPU
-
.
-
From 32 kHz up to 32 MHz max
-
.
-
1.25 DMIPS/MHz Dhrystone 2.1
-
.
-
Memory protection unit
-
.
-
Up to 34 capacitive sensing channels
-
.
-
CRC calculation unit, 96-bit unique ID
-
.
-
Reset and supply management
-
.
-
Low-power, ultrasafe BOR brownout reset with 5 selectable thresholds
-
.
-
Ultra-low-power POR/PDR
-
.
-
Programmable voltage detector PVD
-
.
-
Clock sources
-
.
-
1 to 24 MHz crystal oscillator
-
.
-
32 kHz oscillator for RTC with calibration
-
.
-
Internal 16 MHz oscillator factory trimmed RC+/-1% with PLL option
-
.
-
Internal low-power 37 kHz oscillator
-
.
-
Internal multispeed low-power 65 kHz to 4.2 MHz oscillator
-
.
-
PLL for CPU clock and USB 48 MHz
-
.
-
Pre-programmed bootloader
-
.
-
USB and USART supported
-
.
-
Up to 116 fast I/Os 102 I/Os 5V tolerant, all mappable on 16 external interrupt vectors
-
.
-
Memories
-
.
-
512 Kbytes of Flash memory with ECC with 2 banks of 256 Kbytes enabling RWW capability
-
.
-
80 Kbytes of RAM
-
.
-
16 Kbytes of true EEPROM with ECC
-
.
-
128-byte backup register
-
.
-
LCD driver except STM32L151xE devices up to 8x40 segments, contrast adjustment, blinking mode, step-up converter
-
.
-
Rich analog peripherals down to 1.8 V
-
.
-
2x operational amplifiers
-
.
-
12-bit ADC 1 Msps up to 40 channels
-
.
-
12-bit DAC 2 ch with output buffers
-
.
-
2x ultra-low-power comparatorswindow mode and wake up capability
-
.
-
DMA controller 12x channels
-
.
-
11x peripheral communication interfaces
-
.
-
1x USB 2.0 internal 48 MHz PLL
-
.
-
5x USARTs
-
.
-
Up to 8x SPIs 2x I2S, 3x 16 Mbit/s
-
.
-
2x I2Cs SMBus/PMBus
-
.
-
11x timers: 1x 32-bit, 6x 16-bit with up to 4 IC/OC/PWM channels, 2x 16-bit basic timers, 2x watchdog timers independent and window
-
.
-
Development support: serial wire debug, JTAG and trace
