EPIC 11161000 提取工具, EPIC Rectangular Connectors

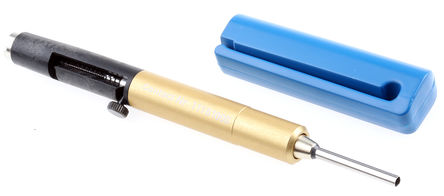

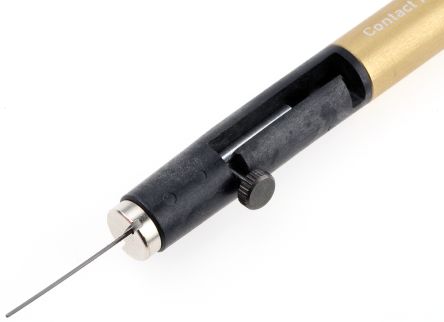

The is a 10-pole Contact Removal Tool for use with rectangular connectors.
欧时:

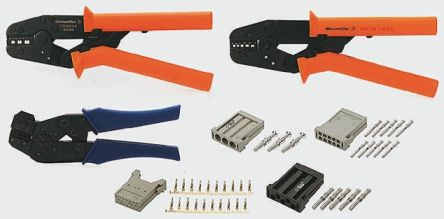

压接工具用于 MC 模块化触点，不包括 10A 压接工具和定位器，用于 10A 触点，请参阅库存号 266-6860 和 266-6882### 认可VDE；CSA；UL；SEV### MC Modular Range The Epic MC Modular range is a highly flexible system of inserts that allows unique connector design within the Epic heavy duty industrial connector range. The system allows signal, power and pneumatic connections to be assembled within a single housing by inserting 2,3,5 or 7 modules into the relevant size frames. The inserts come complete with contacts and once the size of the frame has been chosen depending on the number of modules required, the hoods and bases can be picked out from the standard H-B range.Rated Voltage Vac | 63 | 250 | 400 | 630 ---|---|---|---|--- Rated current A | 4 | 10 | 20 | 40 Insulation group | 3 | | | Overload category | ||| | | | Test Voltage | 1, 5-8kV depending on module | | | Contact resistance | <1mΩ to <5mΩ | | | Insulation resistance | >1010 Ω | | | Termination | Crimp | | | Temperature range | -40°C -+125°C | | | Polarisation | Modules can only fit into the carrier one way round. This ensures correct orientation without sacrificing contacts to code the assembly | | | Protection Class | IP65 DIN 40050 in mated condition | | | Hood/Housing Material | Aluminium Alloy | | | Module Material | Thermoplastic Resin | | |
e络盟:
提取工具, EPIC矩形连接器
Newark:
# EPIC 11161000 Extraction Tool, EPIC Rectangular Connectors
