20-101-1320

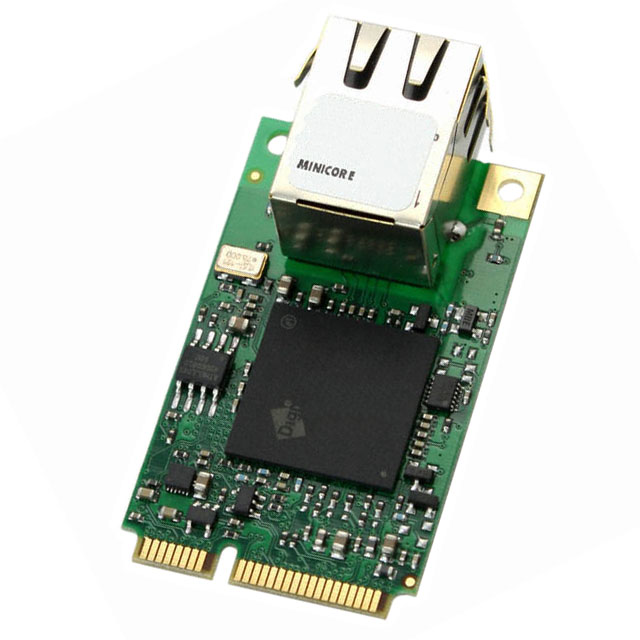

DIGI INTERNATIONAL  20-101-1320  服务器开发模块, MINICORE RCM6750

The ultra compact MiniCore RCM6750 is ideal for todays smart energy initiatives as well as other applications that require a cost effective web enabled device server. The RCM6750 provides up to 6 serial ports, configurable I/O and control features such as PWM. The RCM6700 series is fully programmable, taking advantage of processor peripherals. The programming environment, Dynamic C, is an ANSI C compatible development environment that provides a royalty free TCP/IP stack and Wi-Fi support. Various protocol support such as ZigBee, Modbus and BACnet are also available to help reduce time to market.

.

Rabbit® 6000 running up to 200MHz

.

10/100 Ethernet and pin-compatible with MiniCore 802.11b/g wireless modules

.

1MB of internal RAM for program storage

.

4MB of serial Flash for data logging or web page storage

.

Flexible Interface Module FIM provides protocol support for CANbus or SD/SDIO

.

iDigi platform provides cost-effective cloud computing for remote device management

.

Seamless migration to chip level design

.

5X greater throughput performance
