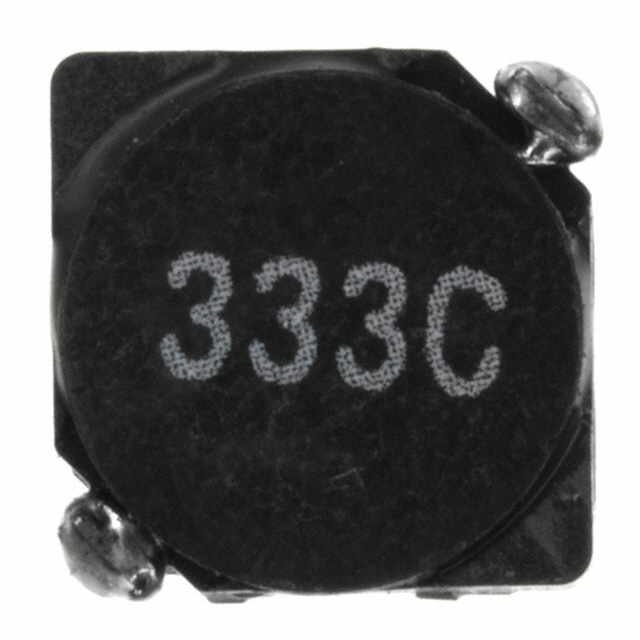

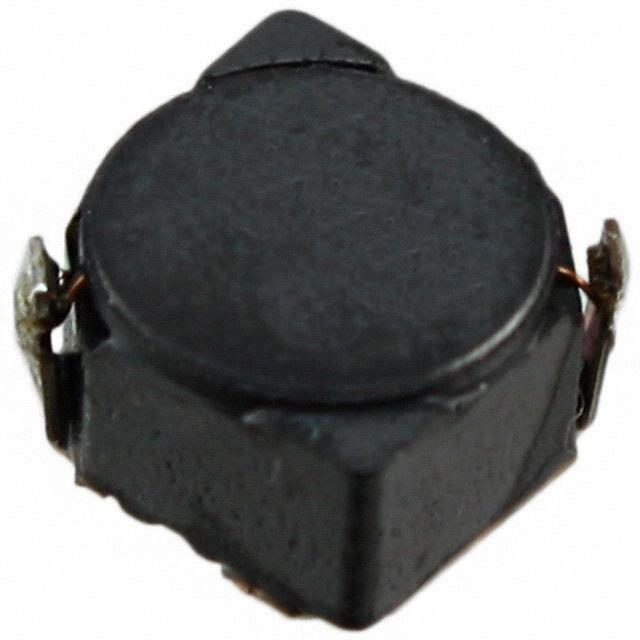

MURATA POWER SOLUTIONS 29333C 功率电感, 33uH, 1A
屏蔽 绕线 器 120 毫欧最大 非标准
得捷:
FIXED IND 33UH 1A 120 MOHM SMD
立创商城:
33uH 1A 120mΩ
贸泽:
Fixed Inductors 33uH 1.0A Shielded SMD
e络盟:
功率电感, 33uH, 1A
艾睿:
Make any circuit look clean and compact using this power 29333C surface mount inductor from Murata Power Solutions. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 7.2 mm long, 4 mm tall and 7.2 mm deep. Its test frequency is 10K Hz. This device utilizes bobbin core technology. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 120m Ohm. It has an inductance of 33u H.
安富利:
Ind Power Shielded Bobbin Core 33uH 10KHz 1A T/R
Verical:
Inductor Power Shielded Bobbin Core 33uH 10KHz 1A 0.12Ohm DCR T/R
Newark:
# MURATA POWER SOLUTIONS 29333C Surface Mount Power Inductor, 2900 Series, 33 µH, 1 A, Shielded, 0.12 ohm
额定电流 1 A
电感 33 µH
测试频率 10 kHz
电阻DC) ≤120 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.12 Ω
安装方式 Surface Mount
引脚数 2

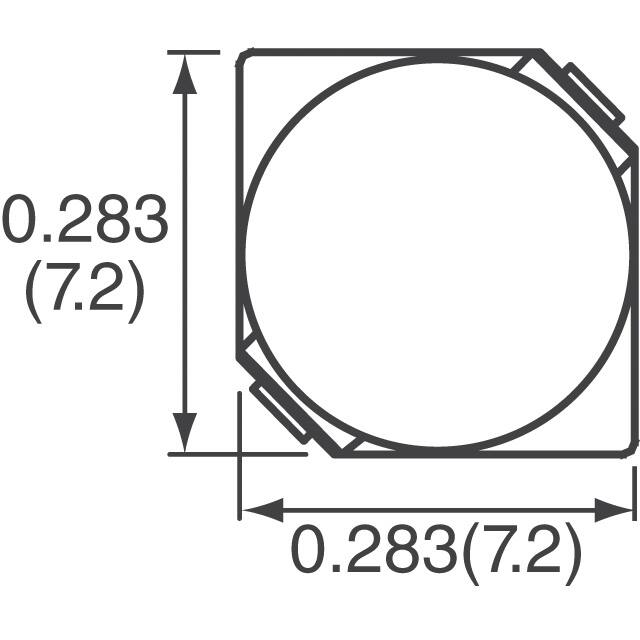

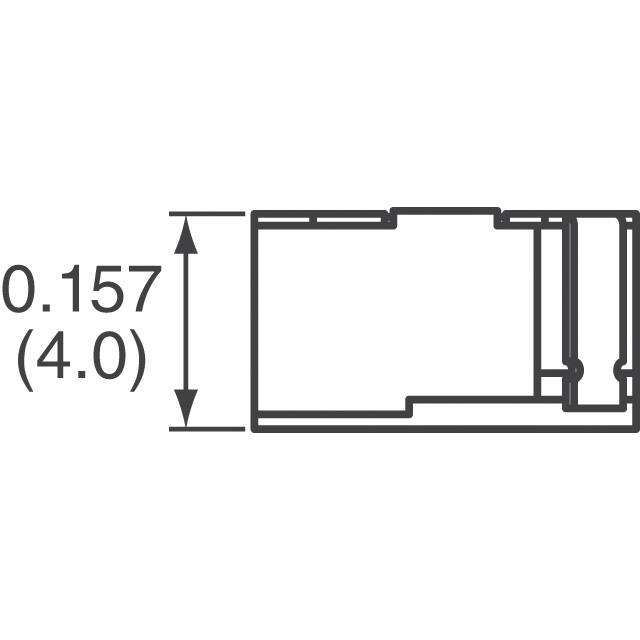

封装 7.2mm x 7.2mm x 4mm
长度 7.2 mm
宽度 7.2 mm
高度 4 mm
封装 7.2mm x 7.2mm x 4mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
