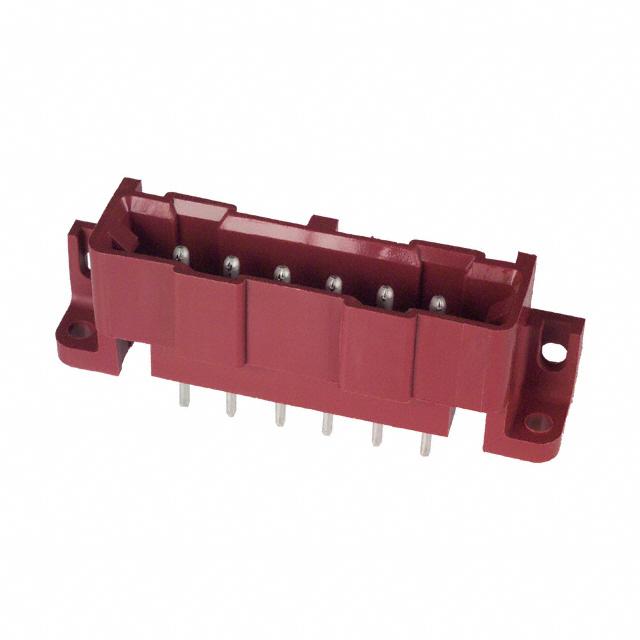

207583-6

Metrimate 6 位置 通孔 单排 直 插针 & 插座型插头

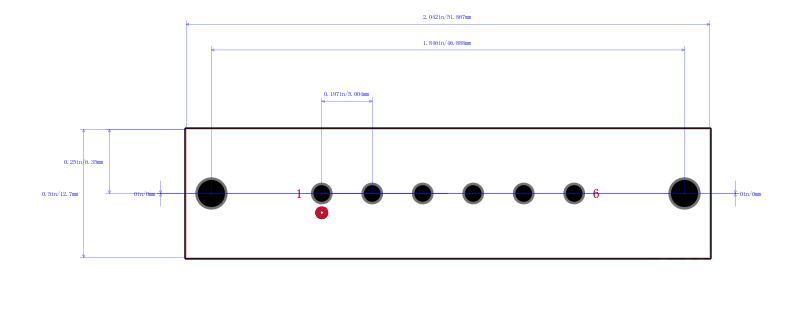

针座 通孔 6 位置 0.197"（5.00mm）

得捷:
CONN HEADER VERT 6POS 5MM

艾睿:
Support physical configuration options for jumper posts by mounting this wire to board 207583-6 header connector from TE Connectivity. This PIN connector&s;s 6 contacts that are made out of copper alloy and plated with tin copper|tin over nickel. It has a maximum voltage rating of 600 VDC|600VAC. It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. This device has a maximum current rating of 14 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 51.87 mm long, 17.5 mm tall and 12.7 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 130 °C. 207583-6 is housed in red nylon.

Allied Electronics:
AMP Metrimate Series, 5mm Pitch 6 Way 1 Row Straight PCB Header, Solder Term, 14A

安富利:
Conn Wire to Board PIN 6 POS 5mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board PIN 6 POS 5mm Solder ST Thru-Hole Tube

Verical:
Conn Rectangular PIN 6 POS 5mm Solder ST Thru-Hole Tube

MASTER:
PIN HEADER ASSEMBLY, 6 POSN, IN-LINE, SMALL METRIC CONNECTOR, METRIMATE

Powell:
Metrimate Connectors

Online Components:
MMATE PIN HDR ASSY,6P LF

Electro Sonic:
MMATE PIN HDR ASSY,6P LF
