796638-6

PCB Header Closed End - TycoThese right angle closed end 5.08 mm centreline headers mate with plugs stock number 361-7465 typical.### 认可UL 94V-0### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块技术参数 --- 额定电流 | 12A 电压额定值 | 250V 交流 导线接受范围 | 0.3 至 2.5mm（实心） 外壳 | 聚酰胺 6//6，UL94 V-0 级 触点材料 | 螺旋夹 - 镀镍黄铜 管座 - 镀锡黄铜

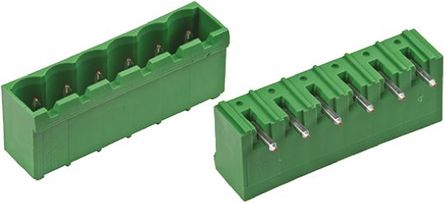

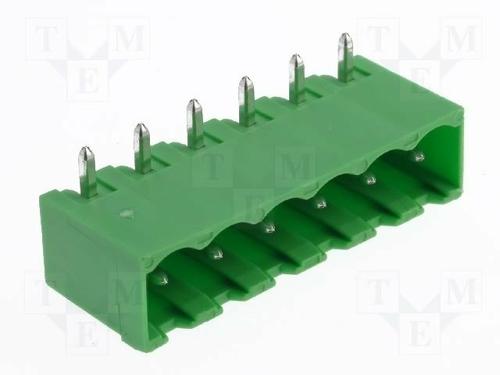

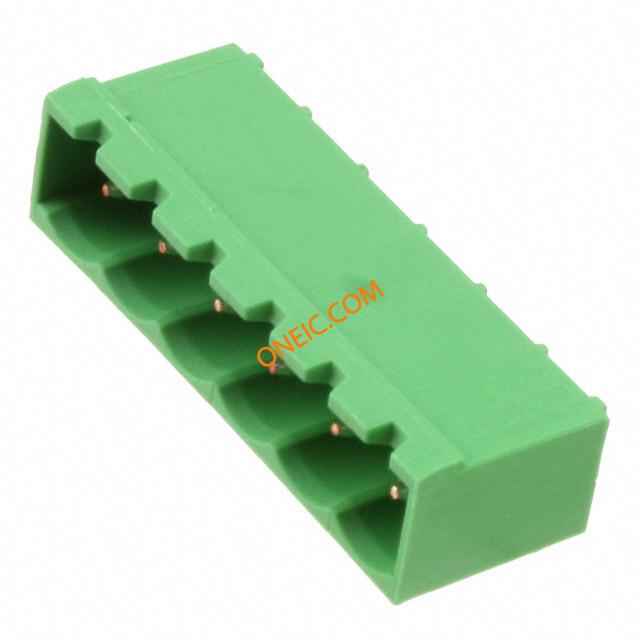

5.08mm TERMI-BLOK 直角闭端端子块管座

TERMI-BLOK 直角安装闭端印刷电路板端子块管座，具有 5.08mm 节距。这些 5.08mm TERMI-BLOK 端子块管座由绿色聚酰胺 6.6 GF 制成。

### 认可

UL 94V-0

得捷:
TERM BLOCK HDR 6POS 90DEG 5.08MM

欧时:
### PCB Header Closed End - TycoThese right angle closed end 5.08 mm centreline headers mate with plugs stock number 361-7465 typical.### 认可UL 94V-0### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块技术参数 --- 额定电流 | 12A 电压额定值 | 250V 交流 导线接受范围 | 0.3 至 2.5mm（实心） 外壳 | 聚酰胺 6//6，UL94 V-0 级 触点材料 | 螺旋夹 - 镀镍黄铜 管座 - 镀锡黄铜

贸泽:
可插拔接线端子 5.08MM RA HDR 6P

艾睿:
Use this shrouded 796638-6 header connector from TE Connectivity where IDC ribbon cables are used. This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a header type gender. It has a right angle body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 15 A/contact. It uses the solder termination method. 796638-6 is housed in green polyamide 6/6. This product is 32.3 mm long, 8.35 mm tall and 12 mm deep.

Jameco:
Connector Shrouded Header 6 Position 5.08mm Solder Right Angle Thru-Hole

安富利:
Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole

TME:
Pluggable terminal block; socket; male; 5.08mm; angled 90°; 15A

Verical:
Conn Shrouded Header 4 Sides HDR 6 POS 5.08mm Solder RA Side Entry Thru-Hole Box

MASTER:
TERMI-BLOK HEADER ASSEMBLY, 90 DEGREE, CLOSED ENDS, 5.08mm PITCH

Powell:
Eurostyle Terminal Blocks

Online Components:
6POS 5.08MM CE R/A HDR,TRM BLK

Electro Sonic:
6POS 5.08MM CE R/A HDR,TRM BLK
